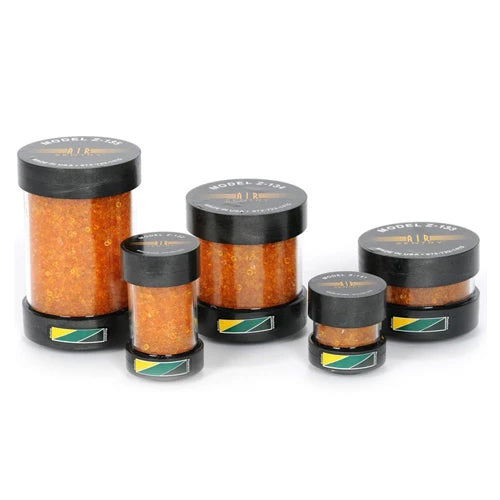

Air Sentry Z-131 Desiccant Breather

Z-Series breathers are designed for applications where space is limited or air flow requirements are lower than 5 cfm. The Z-Series is typically used on gearboxes and low fluid volume applications where mounting space is limited or where a larger breather will not fit without remote mounting.

All Z-Series models feature two 2 micron filters, one on the inlet and a second on the outlet.

Operating Temperature: -20°F (-29°C) to +200F (+93°C)

Specifications
Base Material: 100% Silica Gel
Height: 2 in 5.1 cm
Diameter: 2 in 5.1 cm
Mounting Connection: 1/2″ FNPT
Silica Gel: 0.08 lbs 0.04 kg
Maximum Adsorption Capacity: 0.49 fl oz 14 mL
Maximum Air Flow: 5 cfm
Maximum Reservoir Fluid Flow: 37 gpm
Type of Medium: 100% Silica Gel
