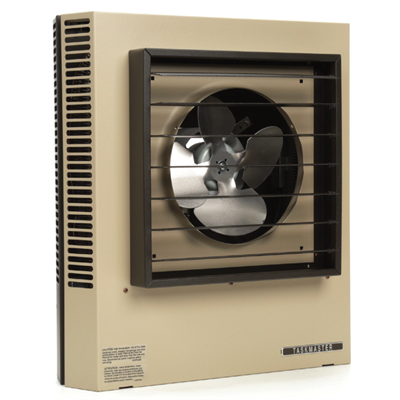

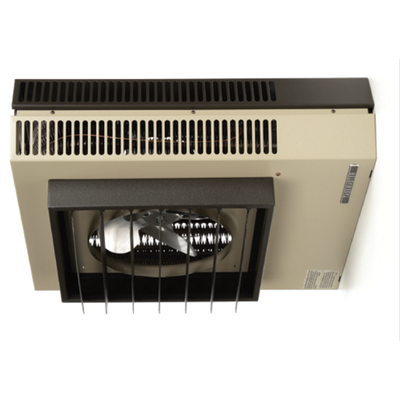

TPI HF1B5105N 5100 Series 5/3.7KW Suspended Fan Forced Unit Heater

$ 1,010.00 $ 646.40
Bulk Pricing: Request a Quote
  • Availability: Out Of Stock
  • Product Sku: 06455602
  • Made in U.S.A.
  • CONSTRUCTION: Heavy 18 gauge welded steel cabinet with powder coated beige and brown two tone finish and control compartment housing a master terminal board with a hinged and latched access door, simplifying wiring, installation & maintenance.
  • HEATING ELEMENT: Copper clad steel sheath element with continuously brazed steel fins formed to allow side draw through air flow.
  • OVERHEAT PROTECTION: All units come equipped with automatic reset type limit controls to de-energize the heater should an over-temperature situation occur.
  • FAN and MOTOR: Totally enclosed, 1-speed, 1-phase, permanently lubricated, thermally protected motors with unit bearings on 3 KW - 20 KW models. Totally enclosed, 2-speed, 1-phase, permanently lubricated, thermally protected motors with sleeve bearings on 25 KW - 50 KW models. All motors mounted with rubber insulators to minimize vibration & noise. Fan over-ride purges unit of residual heat at shutdown.
  • LOUVER ASSEMBLY: Louvers are individually adjustable for directional control of air flow up to 15° from straight horizontal. Optional diffusers available for down flow (vertical discharge) applications.
  • TEMPERATURE CONTROLS: Optional low voltage and line voltage thermostats available with an adjustable temperature range of 40°F to 110°F. Units with model numbers ending in CA1 are factory wired for low voltage controls. 25 KW through 50 KW units are designed for two stage heating operation.
  • INSTALLATION: Unit Heaters can be mounted for horizontal or vertical discharge. Applications up to 6000 Ft.
  • California residents see Prop 65 Warnings


 Catalog Number 06455602
 Model Number HF1B5105N*
 Agency Rating
ETL-CUS
 KW
5.0/3.75
 BTU 17100/12800
 Voltage 240/208
 Phase
1
 Amp 21.2/18.3
 Temperature Rise 40
Air Throw
12
CFM 400
Mounting Height Horizontal 9
Mounting Height Vertical 9
Weight (lbs)
25
