TPI Corporation

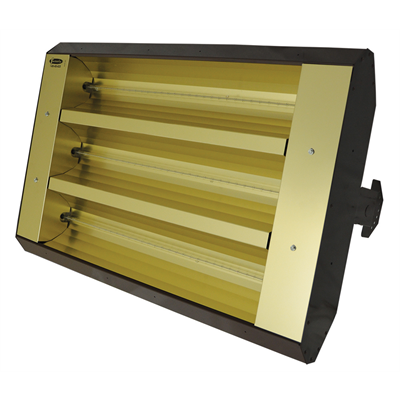

TPI 34390THSS480V THSS Series Mul-T-Mount Electric Infrared Heater
TPI 34390THSS480V THSS Series Mul-T-Mount Electric Infrared Heater
SKU:88118394
Regular price
$ 1,308.80
Regular price
$ 2,045.00
Sale price
$ 1,308.80
Out of stock
Request bulk pricing
Quantity
Couldn't load pickup availability
Product Description
- Listed for suspended, totally exposed (outdoor), high-bay (indoor) comfort heating and exterior snow & ice control applications
- Listed for recessed applications
- 20 gauge powder coated steel or stainless steel housings
- Gold anodized Aluminum reflectors & end caps
- 50% higher wattage densities for 3-element units
- 3-Lamp wiring, three or single phase
- Stainless steel models have non-corrosive housing, hardware and brackets; no ferrous metals used in the unit. Durable in harsh atmospheres & outdoor environments
- High temperature lead wires
- Clear 12mm diameter Quartz Lamp(s) Included
- Elements provide a bright light, generating 8-lumens per watt
- Made in U.S.A.
- California residents see Prop 65 Warnings
3-Lamp Mul-T-Mount Series - With (3) Clear 12mm Quartz Lamps Included
- 600-Volt Models also available, contact factory for more information
- Asymmetrical pattern units are also available for 30° & 60°
- Made in U.S.A.
| Catalog Number | 88118394 |
| Model Number | 343-90-THSS-480V |
| Agency Rating | ETL-CUS |
| KW |
7.5
|
| BTU |
25298
|
| Voltage | 480 |
| Phase | 1 or 3 |
| Reflective Pattern | 90 Deg Symmetrical |
| Lamp Included | Yes |
| Lamp Type | Quartz |
| Lumens | 8/WATT |
| Lamp Number | 3 |
| Lamp PN | 04405402 |
| Height | 11 |
| Length | 33 |
| Width | 21.5 |
| Mounting Height Indoor | Consult Factory |
| Weight (lbs) | 33 |
