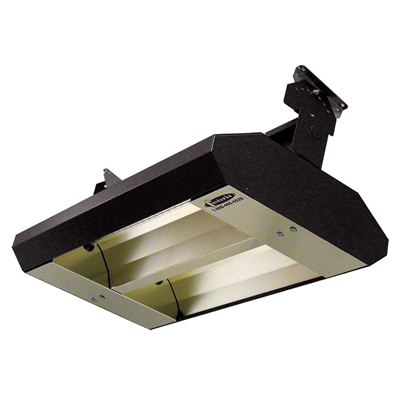

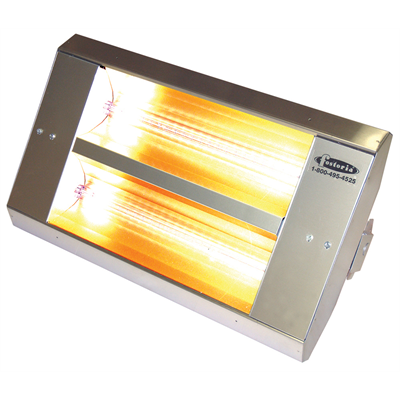

TPI 34290TH480V TH Series Mul-T-Mount Electric Infrared Heater

$ 1,137.00 $ 727.68
Bulk Pricing: Request a Quote
  • Availability: Out Of Stock
  • Product Sku: 88032144
  • Listed for suspended, totally exposed (outdoor), high-bay (indoor) comfort heating and exterior snow & ice control applications
  • Listed for recessed applications
  • 20 gauge powder coated steel or stainless steel housings
  • Gold anodized Aluminum reflectors & end caps
  • 50% higher wattage densities for 3-element units
  • 2-Lamp wiring, single phase
  • Stainless steel models have non-corrosive housing, hardware and brackets; no ferrous metals used in the unit. Durable in harsh atmospheres & outdoor environments
  • High temperature lead wires
  • Clear 12mm diameter Quartz Lamp(s) Included
  • Elements provide a bright light, generating 8-lumens per watt
  • Made in U.S.A.
  • California residents see Prop 65 Warnings

     Catalog Number 88032144
     Model Number 342-90-TH-480V
     Agency Rating ETL-CUS
     KW 5.0
     BTU 17065
     Voltage 480
     Phase 1
     Reflective Pattern 90 Deg Symmetrical
     Lamp Included Yes
     Lamp Type Quartz
     Lumens 8/WATT
     Lamp Number 2
     Lamp PN 04405402
     Height 11
     Length 33
     Width 15
     Mounting Height Indoor 8' - 12'
     Weight (lbs) 25
