TPI Corporation

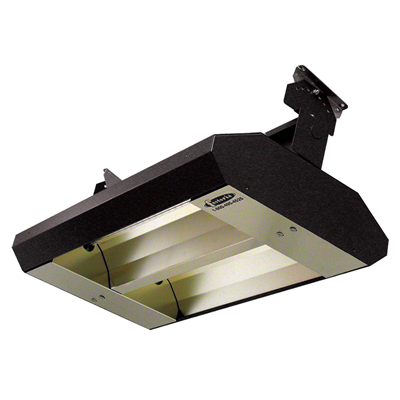

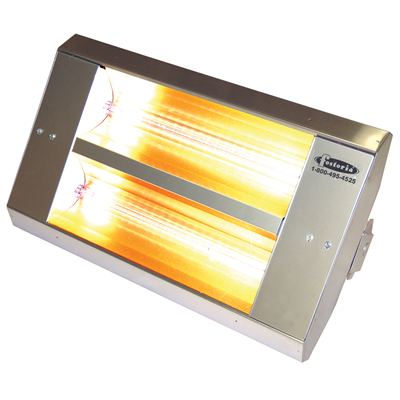

TPI 22290THSS240V THSS Series Mul-T-Mount Electric Infrared Heater
TPI 22290THSS240V THSS Series Mul-T-Mount Electric Infrared Heater
SKU:04445302
Regular price
$ 666.88
Regular price
$ 1,042.00
Sale price
$ 666.88
Out of stock
Request bulk pricing
Quantity
Couldn't load pickup availability
Product Description
- Listed for suspended, totally exposed (outdoor), high-bay (indoor) comfort heating and exterior snow & ice control applications
- Listed for recessed applications
- 20 gauge powder coated steel or stainless steel housings
- Gold anodized Aluminum reflectors & end caps
- 50% higher wattage densities for 3-element units
- 2-Lamp wiring, single phase
- Stainless steel models have non-corrosive housing, hardware and brackets; no ferrous metals used in the unit. Durable in harsh atmospheres & outdoor environments
- High temperature lead wires
- Clear 12mm diameter Quartz Lamp(s) Included
- Elements provide a bright light, generating 8-lumens per watt
- Made in U.S.A.
- California residents see Prop 65 Warnings
| Catalog Number | 04445302 |
| Model Number | 222-90-THSS-240V |
| Agency Rating | ETL-CUS |
| KW | 3.2 |
| BTU | 10922 |
| Voltage | 240 |
| Phase | 1 |
| Reflective Pattern | 90 Deg Symmetrical |
| Lamp Included | Yes |
| Lamp Type | Quartz |
| Lumens | 8/WATT |
| Lamp Number | 2 |
| Lamp PN | 04401702 |
| Height | 11 |
| Length | 24 |
| Width | 15 |
| Mounting Height Indoor | 8' - 12' |
| Weight (lbs) | 20 |
