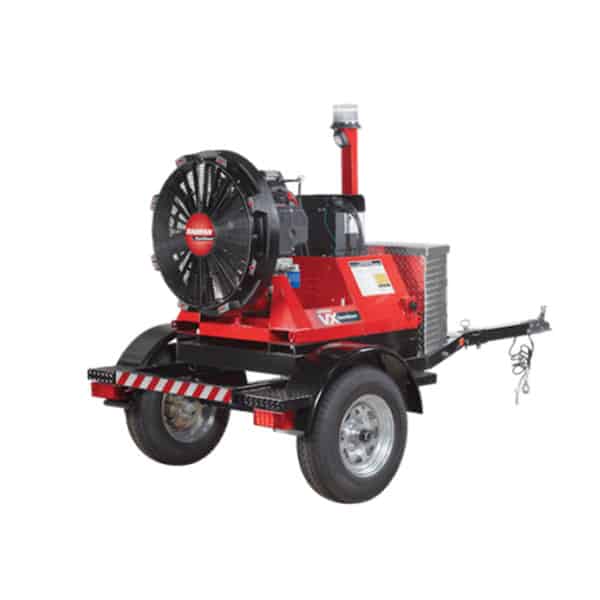

Ramfan VX700 28" Large Structure Ventilator

$ 21,923.00 $ 20,826.85
Bulk Pricing: Request a Quote
  • Availability: In Stock
  • Product Sku: GK5000
Options
Quantity
Shopify secure badge

Large volumes of high-velocity airflow is required for ventilating large and complex structures. Quickly removing smoke, engine exhaust, toxic gases or vapors from a large confined area increases safety of both personnel and property, reducing the chances of unexpected combustion, toxic inhalation, and general atmospheric danger.

  • Used for ventilating:
  • Malls
  • Warehouses
  • Factories
  • Transportation Terminals
  • High-Rise Building Stairwells & Lobbies

When abnormal situations occur that require rapid ventilation to reduce airborne hazards, LSVs are mobilized to rapidly ventilate the space. Whether used by first responders or industrial safety teams, RAMFAN LSVs are designed to meet their rapid response missions with a simple, durable solution that fits the budget.



Ramfan VX700 28" Large Structure Ventilator



Specifications:

MODEL VX700
(skid mounted)		 VX700
(American Trailer Mounted)
Part # GK5000 (skid mounted) GK5005 (trailer mounted)
Airflow Double Door Warehouse 46,700 cfm / 79,390 m3/hr
60,200 cfm / 105,400 m3/hr
Weight 220 lbs / 100 kg  920 lbs / 417 kg
Impeller 7-Blade
Dimensions (h/w/d) 49 x 33.3 x 47.3 in /
124 x 85 x 120 cm		  6.6 x 4.8 x 10.3 ft /
2 x 1.4 x 3.1 m
Engine Honda GX630 23 Hp / 17 kW
Run Time 2 hrs 30 min
Noise 105 dB @ 3' (1 m) / 103 dB @ 10' (3 m)
Approvals CE  -
