Ramfan EFi150xx 16" Hazardous Location Blower

$ 3,769.00
Bulk Pricing: Request a Quote
  • Availability: In Stock
  • Product Sku: EG8200XX
Size
Quantity
Shopify secure badge

The electric powered EFixx Series hazardous location blowers/exhausters, with whole-unit certification, are intended for use in Adverse Atmospheres in accordance with the limitations of the rating. The whole-unit certification not only provides protection and peace of mind to the user; it also prevents suppliers from being linked to the chain of liability.

The largest hazardous location blowers for highest volume of air movement. Use the EFi50xx (0.5 Hp) when you need a high volume, low velocity, somewhat gentler flow; or the EFi150xx (1.5 Hp) model for higher velocities, increased volumes and reduced purge or cooling times. 16" (40 cm) integrated duct adapters. Stackable in storage or during operation.



Features and Benefits:

  • High pressure axial blower
  • Durable, PC/ABS anti-static casing is weatherproof, dent resistant, v0 flame retardant and chemical resistant
  • 2 integrated duct adapters
  • IP55 rain switch enclosure

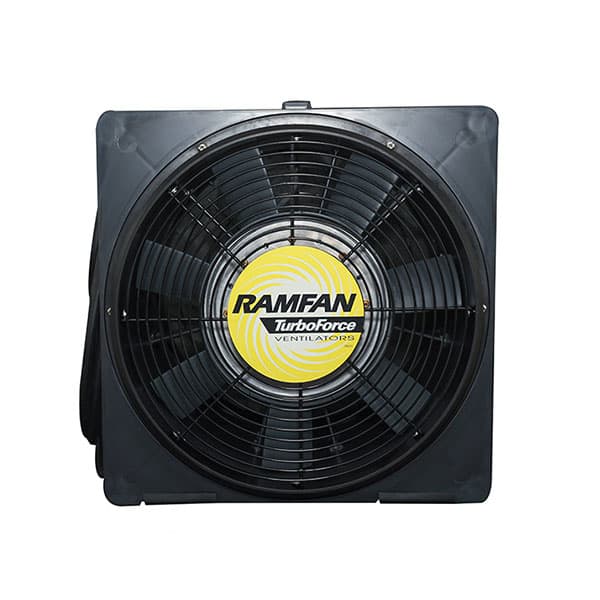

Ramfan EFi50xx 16" Hazardous Location Blower.jpg



Specifications:

Model EFi150xx (115V) EFi150xx (230V)
Part EG8200XX
Ships as 115V		 EG8200XX-230
Ships as 230V
IMPA Code 591507 591507
Motor 1.5 hp / 1.1 kW 1.5 hp / 1.1 kW
Motor Type Totally Encapsulated Air Flame Proof Totally Encapsulated Air Flame Proof
Electric 115/230V, 1ø, 50/60 Hz 115/230V, 1ø, 50/60 Hz
Amps (Start/Run) 80A / 15A 40A / 8A
Cable Lengths 25’/7.6m, 14AWG/2.5mm2 14AWG/2.5mm2
Plug Types A.T.X.
100/130V		 A.T.X. 240V
Operating Temperature -22°F to +104°F / -30°C, to +40°C -4°F to +104°F / -20°C to +40°C
Noise 90.2 dB @ 3' (1 m) 90.2 dB @ 3′ (1 m)
Weight 61 lbs / 28 kg 61 lbs / 28 kg
Dimensions
(h x w x d) 		19 x 18 x16 in / 48 x 46 x 41 cm 19 x 18 x16 in / 48 x 46 x 41 cm
Impeller 7-Blade 7-Blade
Free Air 3750 Cfm (6375 M³/Hr) 3750 Cfm (6375 M³/Hr)
15’/4.6 M W/ One 90° Turn 2700 Cfm (4590 M³/Hr) 2700 Cfm (4590 M³/Hr)
