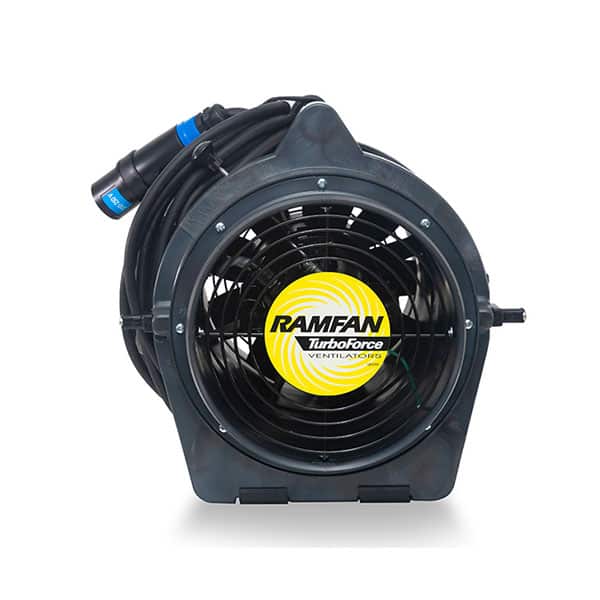

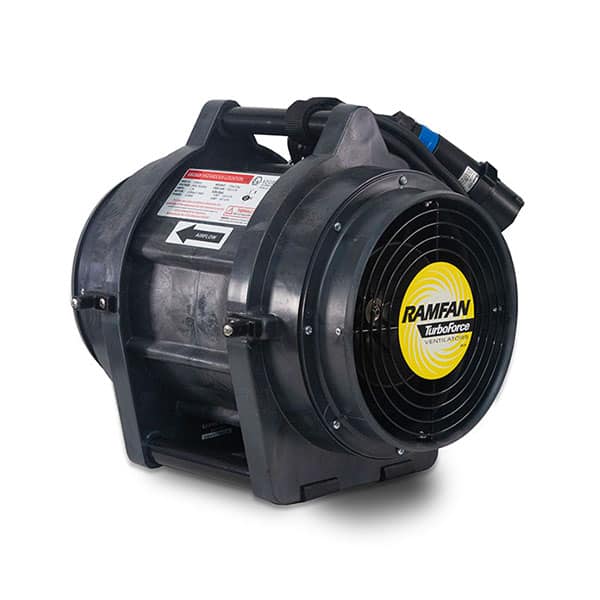

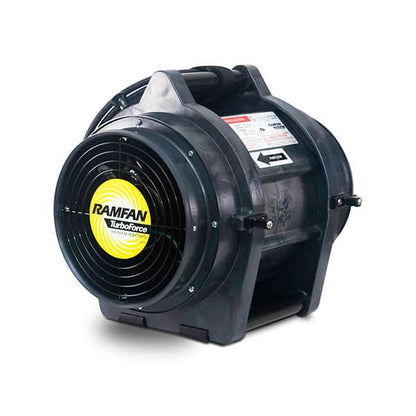

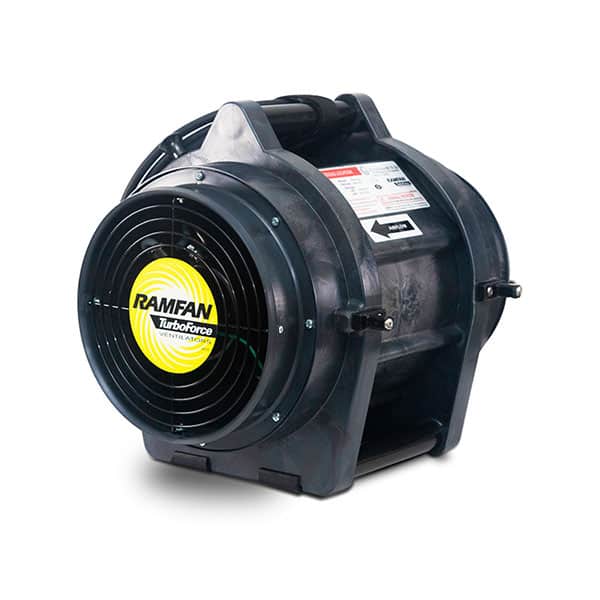

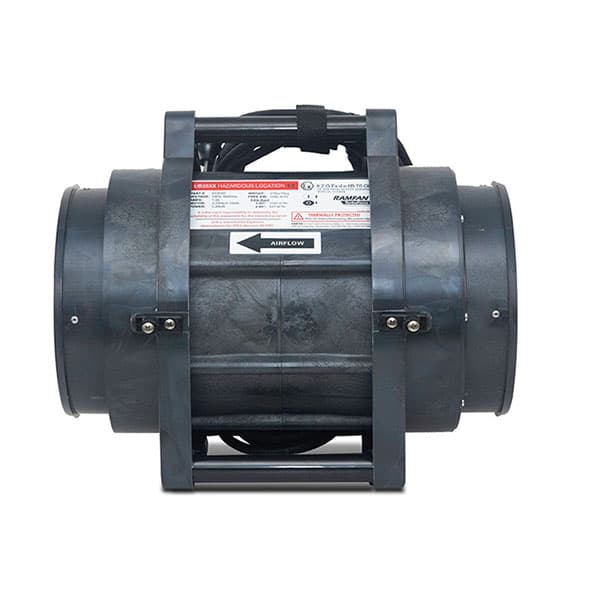

Ramfan UB20XX 8" Blower/Exhauster

NOTE:

Please verify the plug for EF7002.  This item is equipped with an ATEX certified plug and cord set for use in rated locations.  At times, a different arrangement may be required such as a basic 3 prong wall socket plug, EZ–5-15p, that is non explosion proof.

Attached is our plug configuration list.  If a new plug is required, we’ll need you to please revise your PO to include the plug.  There will be a charge for the new plug but there is no charge to install, customers also have the option of installing their own.

EF7002 Plug Configuration List

Explosion-proof blower/exhauster manufactured to meet the requirements of the ATEX Directive, IEC standards and INMETRO standards. Safely blow or exhaust hazardous gases with minimal risk of the fan causing a spark.

Safety is compromised if any component along the electrical path in the blower/exhauster poses a risk of igniting a spark. Therefore, the UB20xx is built using only certified explosionproof components along the electrical path. Furthermore, once assembled the whole unit is certified for safe use in explosive atmospheres in accordance with the limitations of the rating. It is the user’s responsibility to determine the suitability of equipment for the intended purpose.

In addition to providing peace of mind to the user, whole-unit certified fan prevents suppliers from being linked to the chain of liability. That is why it is crucial for users and suppliers to demand whole-unit certification.

Specifications:

UB20XX Fan Quick-Couple Canister 15ft. Duct and UB20XX Fan Quick-Couple Canister 25ft. Duct

Single Phase Electric - Hazardous Location Blowers EX rated ( II 2 G Ex d IIB T6)

Part Numbers:
EF7002 - UB20XX - fan only

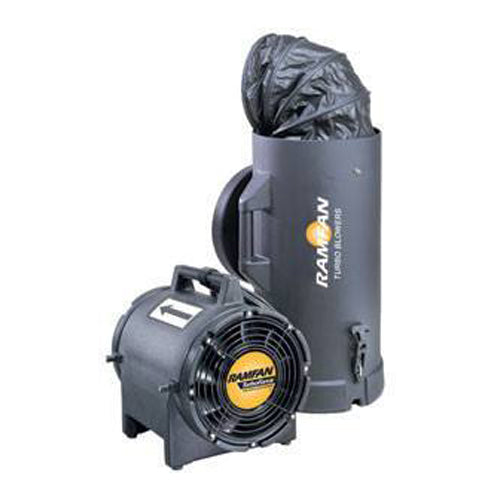

EF7015 - UB20XX fan, quick-couple canister, 15ft. duct

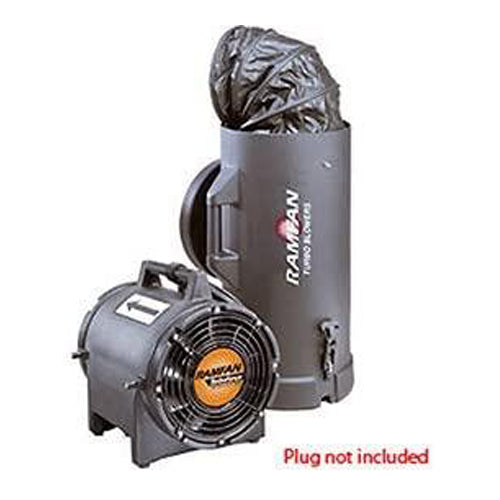

EF7025 - UB20XX fan, quick-couple canister, 25ft. duct
