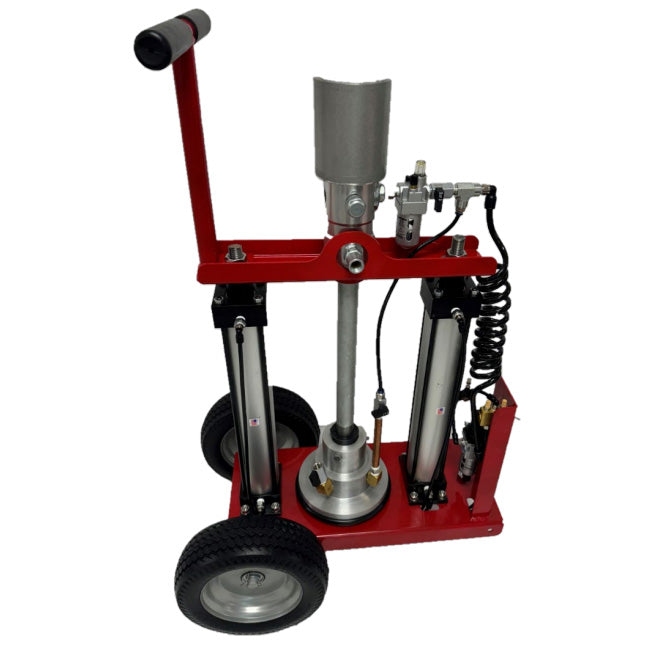

Force Flow 100 Mini Lube Pump

$ 4,595.00
Bulk Pricing: Request a Quote
  • Availability: In Stock
  • Product Sku: FF-MINI-COMPLETE
Quantity
Shopify secure badge
The Force Flow 100 Mini grease pump is a reliable, heavy duty air operated pump.
The Force Flow 100 Mini pump is equipped with 100:1 ratio air motor that is capable of 10,000 psi discharge pressure. Discharge pressure may be adjusted by regulating the inlet air pressure to the pump through the air inlet regulator. The Force Flow 100 Mini pump is equipped with twin cylinders that provide continuous contact between the follower plate and the sealant providing a continuous prime to the pump. The positive pressure applied by the pressure priming system prevents pump cavitation and makes it possible to pump highly viscous sealants at low temperatures. The Force Flow Mini air operated pump is suitable for dispensing viscous oils and NLGI grade 1, 2, and 3 greases over short and long distances.

Pump Ratio: 90:1
Delivery Rime (oz/min): 26
Working Pressure PSI: 80-120
Air Inlet (NPTF): 1/4"
Grease Outlet (NPTF): 1/4"
Air Consumption: 11 scfm
Noise (dB): 79
Drum Size: 10 lb /5 qt can
Dia., Suction Tube: 1.26 in
Length Suction Tube: 19.75 in
Shipping Weight: 102 lbs



Force Flow Mini pumps are proudly made in the U.S.A. Our pumps are supplied completely assembled, ready to use, and backed by a limited 1-year warranty.
