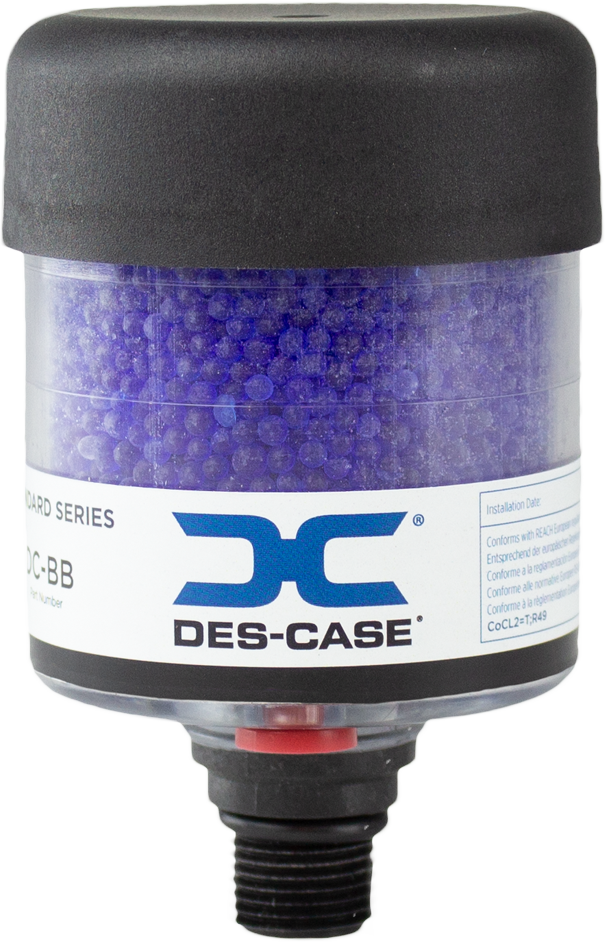

Des-Case DC-BB Desiccant Breather

Standard Desiccant Breathers

Des-Case Standard breathers provide simple, yet dependable protection from moisture and particulate contamination in lubricants and equipment across multiple industries and applications. These versatile breathers are five times more effective than the leading non-desiccant breathers, providing optimal defense against humidity for your applications.

Applications

• Totes
• Transformers
• Storage Tanks
• Hydraulics



Features

1. Domed Cap
A domed cap allows for better washdown runoff.

2. Integrated Nylon Standpipe
The integrated standpipe provides excellent vibration resistance and dissipates impact throughout the unit, eliminating weak points. It also allows even airflow distribution throughout the unit, eliminating inaccurate readings of desiccant saturation.

3. External Ribs
External ribs on shell to create greater durability and grip when installing or replacing breather.

4. Integrated Drip Ring
An integrated drip ring keeps shedding water from entering the vent holes.

5. Threaded Mounting
Easily replaces standard filler/breather cap with multi-fit connection or one of several adapters.

6. Air Vents
Individual air intakes are opened based on flow requirements of the system. Plugs protect unit during shipping and storage.

7. Foam Pad
Foam filter captures any oil mist and disperses incoming air evenly over filtration and drying areas.

8. Filter Element
Polyester filter element removes airborne contamination to 3-micron absolute. Unique loops allow particles to release during system exhalation, helping to increase breather life.

9. Enhanced Seal
An enhanced seal eliminates potential for airflow bypass.

Specifications

Unit Height: 3.87 in (98 mm)
Unit Diameter: 2.52 in (64 mm)
Filter Efficiency: 3μ absolute (β3≥200)
Amount of Silica Gel: 0.1 lbs (59 g)
Adsorption Capacity: 0.8 fl oz (23 ml)
Max. Flow Rate: 5 cfm (141 lpm)
Temperature Range: -20°F to 200°F (-29°C to 93°C)
Connection Size: 3/8″ Multi-Fit (NPT, BSPP, BSPT)
Max. Airflow at 1 psid: 37 gpm (141 lpm)
Gearbox/Storage Tank Max. Volume: 15 gal (57 L)
Hydraulic Reservoir Max. Volume: 2 gal (8 L)
Micron Rating: 3 micron
