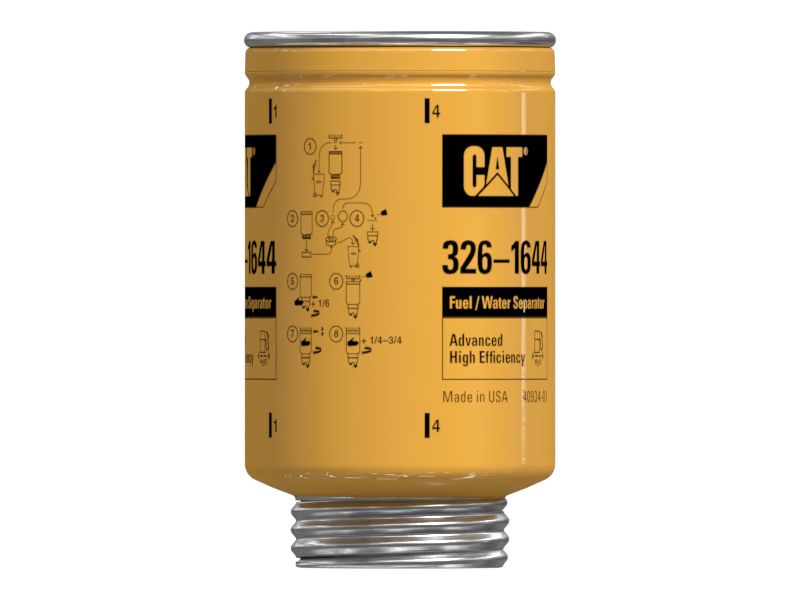

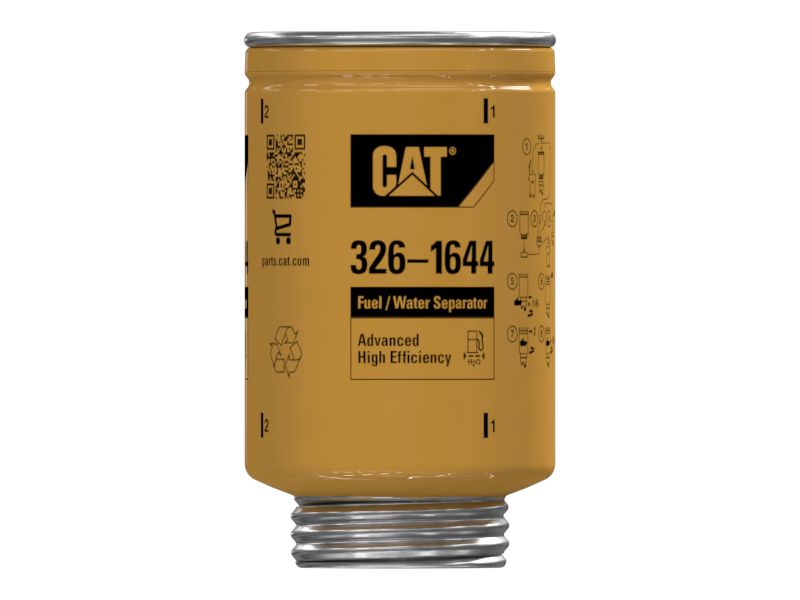

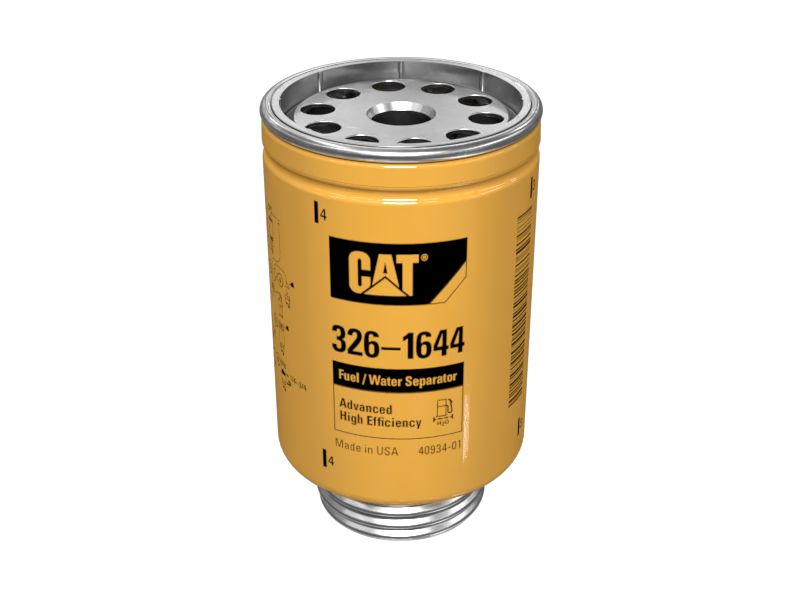

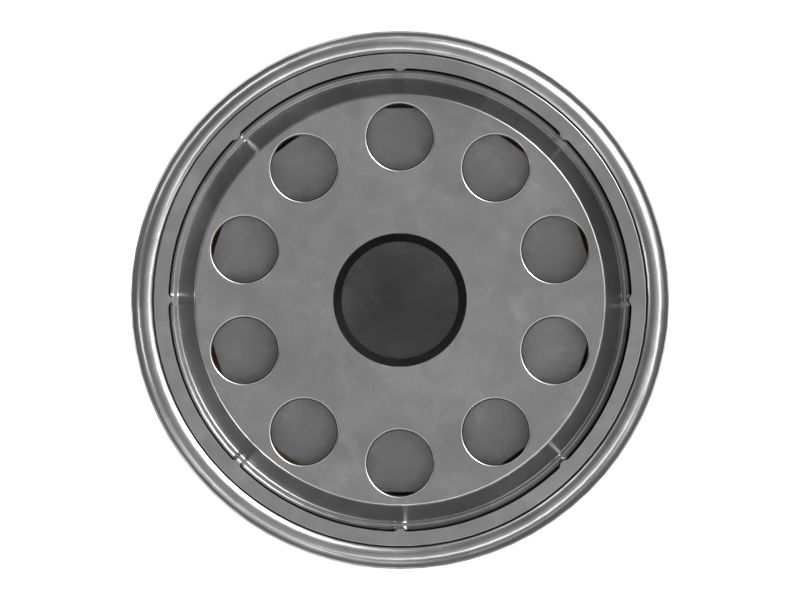

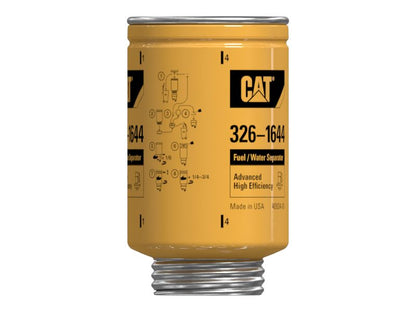

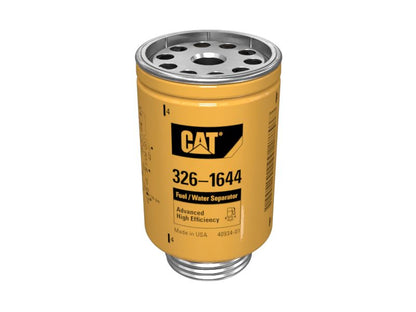

CAT 3261644 326-1644 Fuel Water Separator

Advanced Efficiency Fuel Water Separators are designed to eliminate 100% free water and 90% emulsified water along with smaller contaminates while helping extend the life of your secondary filter and expensive injectors.

Cat® Fuel Water Separators are built to extend the life of your secondary filter and precision fuel system components.

ATTRIBUTES:

• Unique filter media provides unsurpassed protection.
• Acrylic beads prevent bunching
• Spiral roving provides greater pleat stability and maximum dirt holding capability
• Nylon center tube prevents metal contamination
• Molded end caps prevent leaks

Specifications for Cat 3261644 Fuel Water Separator:

Efficiency Rating: Advanced Efficiency

COMPATIBLE MODELS:

WHEEL-TYPE SKIDDER
525C 535C 545C

GENERATOR
SR4B

INTEGRATED TOOLCARRIER
IT38G II IT38H IT62G II IT62H

WHEEL-TYPE LOADER
924H 924HZ 928H 928HZ 930H 938G II 938H 950G II 950H 962G II 962H 966D 966E 966F 966F II 966G II 966H 972G II 972H 980C 980F 980G 980G II 980H 990H 990K 992K 993K 994F 994H 994K

WHEEL TRACTOR-SCRAPER
613G 627G 637D 637E 637G

MATERIAL HANDLER
C7 C9 M325D L MH M325D MH

MOTOR GRADER
120K 2 120H 120K 120M 12H 12K 12M 135H 140 140G 140K 2 140K 140M 14L 14M 150 160 160K 160M 16M 16M3 18M3 24M

OEM SOLUTIONS
CAT WDS

ARTICULATED DUMP TRUCK
725 730 735 735 OEM 740

TRACK-TYPE TRACTOR
D5N D5R LGP D5R XL D6K D6K LGP D6K XL D6N D6R D6R II D6R III D6R STD D6R XL D6T D7E D7R D7R LGP D7R XR D8N D8T D9T

ASPHALT PAVER
AP-1000E AP-1055E AP-500E AP-555E AP-600D AP-655D BG500E BG555E BG600D BG655D

PIPELAYER
561N 583T 587T PL61 PL83 PL87

EXPANDED MINING PRODUCTS
MD6290

EXCAVATOR
311D LRR 312C 312C L 312D 312D L 314D CR 314D LCR 315C 315D L 319D 319D L 319D LN 320C 320C L 320D 320D FM 320D FM RR 320D GC 320D L 320D LN 320D LRR 320D RR 321D LCR 322C 322C FM 323D 323D L 323D S 323D LN 323D SA 324D 324D FM 324D L 324D LN 325C 325C FM 325C L 325D 325D FM 325D FM LL 325D L 325D MH 326D L 328D LCR 329D 329D L 329D LN 330C 330C FM 330C L 330C LN 330C MH 330D 330D FM 330D L 330D LN 330D MH 336D 336D L 336D LN 336D2 336D2 L 340D L 345D L M325D L MH

ENGINE - GENERATOR SET
3516E LC51XX POWER SYS

PAVING COMPACTOR
CB-54 CB-64 CP-54 CP-56 CP-64 CP-74 CP-76 CS-54 CS-56 CS-64 CS-74 CS-76

EARTHMOVING COMPACTOR
816F II 815B 815F 815F II 816F 825C 825G II 825H 826C 826G 826G II 826H

WHEEL DOZER
814F 814F II 824C 824G 824G II 824H 844H 844K 854G 854K

FOREST PRODUCTS
2290 2390 2391 2470C 2491 2590 322C 324D FM 324D FM LL 511 521 521B 522 522B 532 551 541 541 2 552 552 2 553C 573 584 584HD TK711 TK721 TK722 TK732 TK741 TK751 TK752

ROAD RECLAIMER
RM-300 RM-500

PETROLEUM PRODUCTS
C9 CX31-C11I CX31-C13I CX31-C9I CX31-P600 CX35-P800

WHEELED EXCAVATOR
M325C MH M330D

OFF-HIGHWAY TRUCK
770 772 773F 775F 777B 777C 777D 777F 784C 785 785B 785C 785D 785G 789 789B 789C 789D 789G 793C 793D 797 797B D10R

ENGINE - INDUSTRIAL
3126 3126B 3176C 3196 3304B 3306B 3406B 3408 3408B 3516C 3516E 3406C C-10 C-12 C-9 C11 C13 C15 C27 C32 C7 C9 C9 GEN SET XQ1140

TRACK-TYPE LOADER
953C 953D 963C 963D 973C 973D

CROSS REFERENCE:

BALDWIN BF1399-SP, CARQUEST 86606, DONALDSON P550900, FIL ZP3152AF, FLEETGUARD FS20007, HASTINGS FF1186-SP, HIFI-FILTER SN55437, LUBER-FINER LFF6771SC, SAKURA SFC55170

* All fitment filter part numbers are based on your engine serial number.
* Please confirm with our team if you are unsure this filter will fit your engine.
