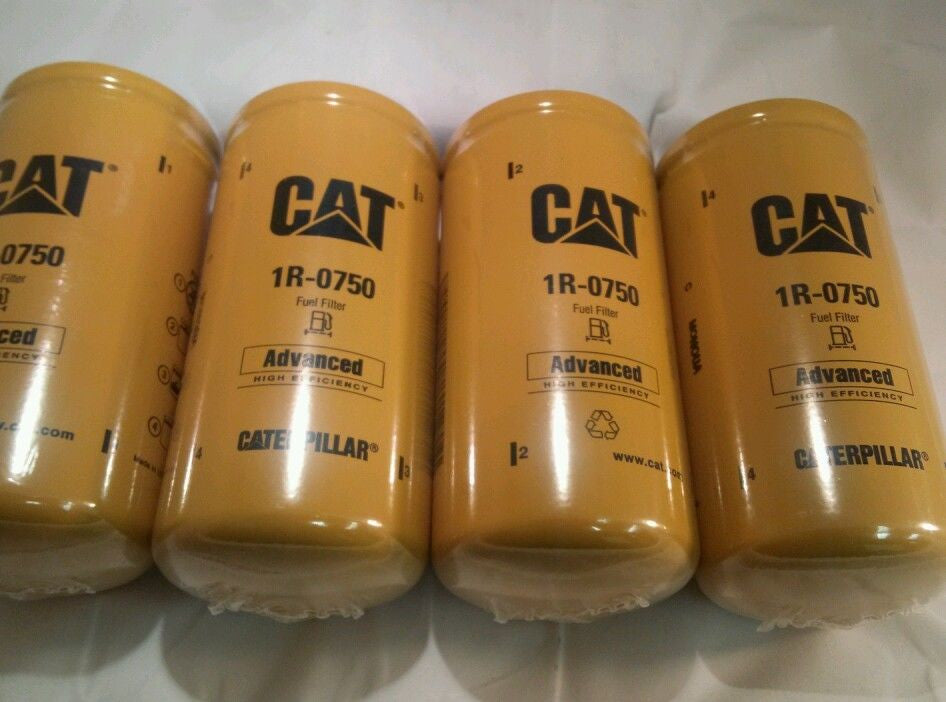

CAT 1R-0750 Fuel Filter

Get the most out of your machine and improve your bottom line with maximum filtration efficiency and protection.

This fuel filter 1R0750 is specifically designed to capture the smaller particles that do the most damage to fuel injectors, fuel pumps, and other engine parts.

Fuel can become contaminated at many places: directly from the distributor, during operation, or through maintenance work.

Without a proper fuel filter, your engine can become clogged with unwanted debris, such as dust and rust. The result is restricted fuel flow and diminished performance as your engine struggles to draw ample fuel to continue operating.

The Caterpillar 1R-0750 Fuel Filter filters provide the superior quality and protection you need to maximize your engine's life.

Authentic Caterpillar 1R-0750 fuel filter made in the USA. Don't settle for any other brand! Cellulose media filters particles as small as 2 microns. This filter is commonly used for Duramax diesel fuel filter adapters and conversions.

ATTRIBUTES:

• Unique filter media provides unsurpassed protection
• Acrylic beads prevent bunching
• Spiral roving provides greater pleat stability and maximum dirt holding capability
• Nylon center tube prevents metal contamination
• Molded end caps prevent leaks

Specifications for CAT 1R0750 Fuel Filter:

Thread Size (inch): 1-14-2B
Length (mm): 181.5
Diameter (mm): 6.3
Efficiency Rating: Advanced Efficiency

CROSS REFERENCE:

• Aqua Power 6016
• Baldwin BF7633
• Cameco CB01405912
• Caterpillar 1R0750
• Coopers Fiaam FSM4211
• Donaldson P551313, P551740
• Fleetguard FF5320
• Fleetrite FFR85245, FFR85320
• Fram P8334
• Greyfriars 878S
• Ingersoll Rand 35310549
• Kralinator F398
• Luberfiner LFF3347
• Purolator Facet 6940233, F65213
• Sakura FC5507, FC-5507
• Sure Filter SFF1313
• Wix 33528, 33528MP
• Woodgate WGF5245

COMPATIBLE MODELS:

WHEEL-TYPE SKIDDER
515 518C 525 528B 530B 545

GENERATOR
SR4

INTEGRATED TOOLCARRIER
IT12B IT14B IT14F IT18F

WHEEL-TYPE LOADER
910E 910F 918F 936F 950B 950B/950E 950E 966D 966E 966F 966F II 966G 970F 972G 994D 994F 994H

TRACK-TYPE SKIDDER
517 527 D4HTSK III D5HTSK II

WHEEL TRACTOR-SCRAPER
611 613C 613C II 615 615C 615C II 627B 627E 627F 627G 637D 637E 637G 639D

MARINE PRODUCTS
3116 C9

LOAD, HAUL, DUMP
R1300 R1300G

MOTOR GRADER
120G 12G 12H 12H ES 12H NA 130G 140G 140H 140H ES 140H NA 143H 14G 14H NA 160G 160H 160H ES 160H NA 163H NA

OEM SOLUTIONS
CAT WDS

ARTICULATED DUMP TRUCK
D250E D250E II D25D D300D D300E D300E II D30D D350D

TRACK-TYPE TRACTOR
5 56 56H 57 57H 5P 5S 6 6A 6S 6SU 7 7A 7S 7SU 7U D4H D4H III D4H XL D5 D5E D5H D5H XL D6D D6D SR D6E D6E SR D6F SR D6G D6G SR D6G2 LGP D6G2 XL D6GC D6H D6H II D6H XL D6H XR D6R D7G D7G2 D7H D7R

ASPHALT PAVER
AP-1000 AP-1050

PIPELAYER
572G 572R

EXCAVATOR
206B 211B 212B 213B 214B 214B FT 224B 235B 235C 235D 320D 320D FM 330 L 330 LN 330-A 330-A L 330-A L 330-A LN 330B 330B L 330B LN 350-A 350-A L

ENGINE - GENERATOR SET
3114 3116 3304 3304B 3306B

PAVING COMPACTOR
CB-434 CB-534 CB-634C CP-533 CP-563 CS-531 CS-533 CS-563 CS-573 CS-583 PS-500

EARTHMOVING COMPACTOR
815B 815F 816B 816F

BACKHOE LOADER
446 446B

COLD PLANER
3208 3412 PR-1000 PR-1000C

WHEEL DOZER
814B 814F

ENGINE - TRUCK
3116

TELEHANDLER
RT100 RT80

ENGINE - MACHINE
3114 3306

CHALLENGER
65 65B 65C 65D 70C

WHEELED EXCAVATOR
W330B

OFF-HIGHWAY TRUCK
789D 776D 777D 784C 785 785B 785C 785D 789 789B 789C 793C 793D 797B

ENGINE - INDUSTRIAL
3116 3208 C12 3304B 1673C 3114 3204 3304 3306 3306B 3306C 3516B 3516C C4.4 C9 C9.3 D330C D333C

TRACK-TYPE LOADER
953B 973 973C

FREQUENTLY ASKED QUESTIONS:

 1. Is this filter rated for suction?

This is a cat fuel filter on the return side. This is not a suction filter

2. What is the size of the gasket like diameter?
2.8 inches

3. Is CAT 1R-0750 a diesel filter or a hydraulic fluid filter? Also, is this equivalent and interchangeable with cat part# 1p-2299?
It is a diesel fuel filter. A CAT 1R-0750 is a 2-micron filter, while a CAT 1P-2299 is a 6 micron.

4. What is the difference between this 1R-0750 vs 1R-0751?
The 1R0750 has a 1-inch thread port. The 1R0751 has a 7/8 inch thread port.

5. This filter still separates water correct?
Yes just doesn't have a drain on it. I use it in conjunction with an air dog system that has a water fuel separator and emulsification filter and it filters down to two microns.

APPLICATIONS:

Caterpillar
D4E, D6RLGP, D6HLGP, D5H, D6, 215, 330, 816B, D250E, 120G(3304 Eng.), 12G(3306 Eng.), 12H; 12H ES; 12H NA(3306 Eng.), 130G(3304 Eng.), 140G(), 140H; 140H ES; 140H NA(), 143H(3306 Eng.), 14G(3306 Eng.), 14H; 14H NA(3306 Eng.), 160H; 160H ES; 160H NA(3306 Eng.), 160G(3306 Eng.), 163H(3306 Eng.), 206B(3114 Eng.), 212B(3114 Eng.), 211B(3114 Eng.), 213B(3116 Eng.), 214B; 214BFT(3116 Eng.), 224B(3116 Eng.), 235B; 235C; 235D(3306 Eng.), 3114, 3114(), 3116(), 3116, 311D LRR(C4.2 Eng.), 3176(), 3116(3116TA), 315D L(C4.2 Eng.), 319D(C4.2 Eng.), 320D; 320D L(C6.4 Eng.), 3204(), 3208(), 3208, 330; 330L; 330LN(3306 Eng.), 3306(), 3306; 3306B(), 3306B, 3306C(Cat 3306C Eng.), 3304(), 3304; 3304B(), 3304; 3304B(3304, 3304B Eng.), 3304B, 3306, 330B; 330B L(3306 Eng.), 3406;3406B;3406C, 3512; 3512B(), 350; 350L(3306 Eng.), 3516;3516B(), 446 Backhoe/Loader(3114 Eng.), 446B Loader(3114 Eng.), 517(Cat 3304 Eng.), 518C(3304 Eng.), 515(), 525(3304 Eng.), 530B Grapple Skidder(Cat 3306 Eng.), 528B(3306 Eng.), 545 Skidder(3306 Eng.), 572G(), 572R(3306 Eng.), 613B; 613C(3116 Eng.), 613C(3208 Eng.), 613C(3116 Eng.), 611(3306 Eng.), 615C(3306 Eng.), 627; 627B(), 627E(3406 Eng.), 627E(3306 Eng.), 627F(3406B Eng.), 627G(3306 Eng.), 637G(3306 Eng.), 639D(3306 Eng.), 637D(3306 Eng.), 637E(3306 Eng.), 777D(3508B Eng.), 776D(3508B Eng.), 784C(3512 Eng.), 793C(3516B Eng.), 785C(3512B Eng.), 785D(3512C Eng.), 789C(3516B Eng.), 797B(3524B Eng.), 814B(3306 Eng.), 814F(3306 Eng.), 815B Compactor(3306 Eng.), 815F(), 815F Compactor(3306 Eng.), 816B(3306 Eng.), 816F(), 918F Wheel Loader(3114 Eng.), 910E(3114 Eng.), 910F Wheel Loader(3114T Eng.), 936F Wheel Loader(3304 Eng.), 950B; 950E(3304 Eng.), 953B Track Loader(3116 Eng.), 966D; 966E(3306 Eng.), 966F(3306 Eng.), 966G(3306 Eng.), 973(3306 Eng.), 970F(3306 Eng.), 972G(3306 Eng.), 973C Loader(3306 Eng.), 994F(3516B Eng.), 994H(3516B Eng.), AP1050(Cat 3116 Eng.), AP1000(Cat 3116 DIT Eng.), CB434(Cat 3114T Eng.), CB531; CS531(3116 Eng.), CB534(Cat 3304), CB583; CS583(3116 Eng.), CB634C(3116 Eng.), Challenger 65;Challenger 65B(), Challenger 65C; Challenger 65D(3306 Eng.), Challenger 70C(3306 Eng.), CP533; CS533(3116 Eng.), CP563;CS563(3116 Eng.), D300B;D300D(3306 Eng.), D300E(3306 Eng.), D250E; D250E Series II(3306 Eng.), D25D; D30D(3306 Eng.), D350D(3306 Eng.), D4H; D4H XL Series III, D4HTSK Series III(3304 Eng.), D5E(3306 Eng.), D5H; D5H LGP(3304 Eng.), D5HTSK(3304 Eng.), D6D; D6D SR(3306 Eng.), D6E; D6E SR(3306 Eng.), D6F SR; D6G SR(3306 Eng.), D6G XL Series II(3306 Eng.), D6H Series II; D6H LS Series II; D6H XL Series II; D6H XR Series II(3306 Eng.), D6H; D6H XR(3306 Eng.), D6R; D6R LGP; D6R XL; D6R XR, D7G Series II(3306 Eng.), D7H; D7H Series II(3306 Eng.), D7R; D7RL(3306 Eng.), E300B; EL300B(3306T Eng.), IT12B(3204 Eng.), IT12F(3204 Eng.), IT14B(3114 Eng.), IT14F(3114T Eng.), IT18F(3114 Eng.), PR1000C Cold Planer(3208 Eng.), PS500(3208 Eng.), R1300; R1300G(3306 Eng.), RM500; 527(3304 Eng.), RT80; RT100(3114T Eng.), W345B(3176C Eng.), W330B; W330B MH(3306 Eng.)

C6H042 Kodiak; C7H042 Kodiak; C7H064 Kodiak(Cat 3116 Eng.)

C8000; CF8000; CFT8000; CT8000; F8000; FT8000; L8000; LN8000; LNT8000; LS8000; LT8000(Cat 3208 Eng.), CT8000(Cat 3208 Eng.), LT9000(Cat 3306 Eng.)

Century C112(Cat 3176 Eng.), Century C120(Cat 3306 Eng.), Columbia 120(Cat 3176 Eng.), FL60(Cat 3176 Eng.), FLA(Cat 3306 Eng.), FLA(Cat 3176 Eng.), FLC(Cat 3306 Eng.), FLC(Cat 3176 Eng.), FLD(Cat 3306 Eng.), FLB(Cat 3176 Eng.), FLL(Cat 3176 Eng.), FLL(Cat 3306 Eng.), FLT(Cat 3306 Eng.)

* All fitment filter part numbers are based on your engine serial number.
* Please confirm with our team if you are unsure this filter will fit your engine.
