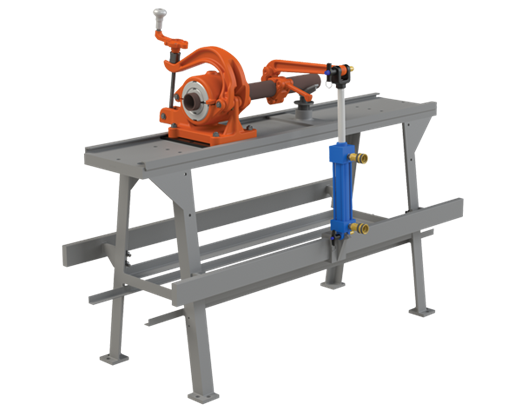

Gearench ZI1260-7 Petol Bench Installation Kit

• Designed for making up or breaking out downhole pumps and specialty downhole tools requiring accurate torque without surface marring
• Available power consoles for hydraulics provide a gauge with exact read-out in ft.-lbs. of torque and feature a pressure relief valve that can be set to a specific working pressure at which point the system will stop torquing (Electric power consoles and hose assemblies are sold separately from Pump Bench)
• Friction Tongs and Friction Vise Bushings are bored to fit a specific O.D. by friction alone

NOTE: The Friction Breakout Unit is capable of a maximum working load of 5,000 ft.-lbs.

Specifications:

• Weight: 1 lb.

How it works:

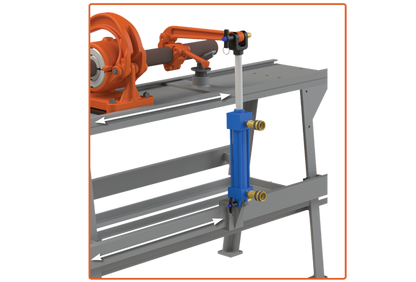

The PETOL SURGRIP FRICTION VISE and hydraulic cylinder will slide the entire length of the PETOL Hydraulic Pump Bench to grip different areas on the workpiece and change from the makeup to breakout position.

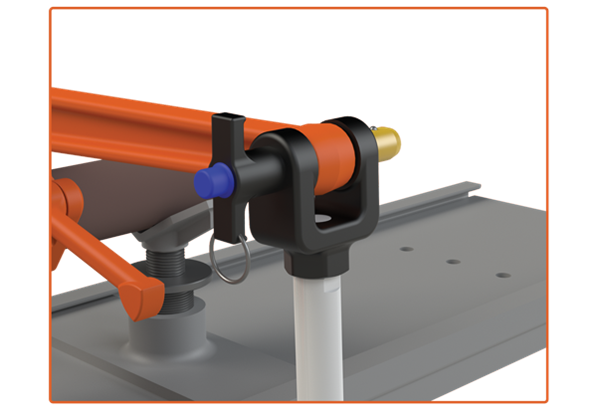

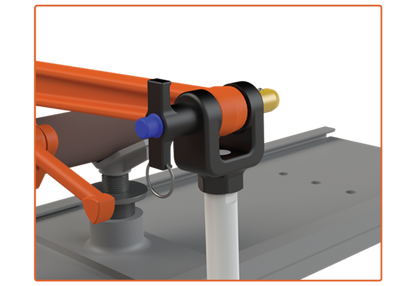

The PETOL HYDRAULIC FRICTION TONGS have perfect ratcheting action. A quick release pin enables the operator to quickly change out sizes.

PETOL PLATERENCHES are used with the PETOL HYDRAULIC SOCKETRENCH HANDLE to makeup and breakout parts with wrench flats.

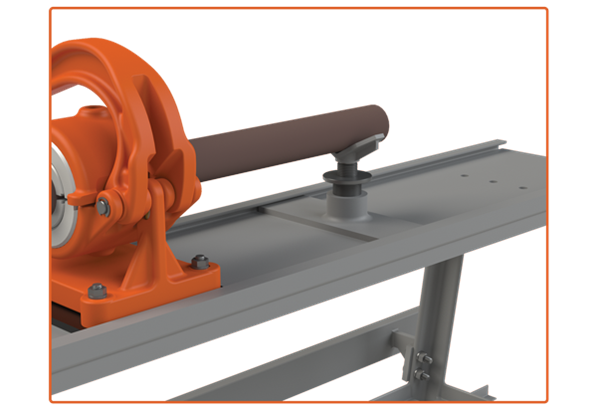

The PETOL BENCH SADDLE offers additional support for the work piece. The height of the bench saddle is adjustable, and it can be moved the entire length of the bench.

Note: Maximum working loads range from 500 ft.-lbs. to 5,000 ft.-lbs. depending on size of tong being used.
