Walker Filtration XF371F PRO XF Particulate Filter

Walker Filtration’s PRO XF high efficiency compressed air filters feature an innovative modular design and provide a flexible, reliable, and compact compressed air filtration solution.

Designed for high flow applications and operating pressures up to 232 psig (16 barg), PRO XF takes a revolutionary approach to the traditional fabricated flanged market – providing a compact and flexible modular design that is ideal for use in multi compressor installations and skid based packages. Available as individual threaded and flanged filters, by integrating a filter ‘module’ with slim-line connectors, the entire package is ideal for a multi-banked solution. PRO XF’s space efficient design is up to 65% lighter and 45% smaller when compared to comparative fabricated models.

The range includes all coalescing, particulate, vapor and dust filtration grades, and Water Separator models, providing a comprehensive compressed air filtration solution for high flow applications with flow rates from 700 to 3000 scfm (1189 to 5097 Nm³/h).

Ease of installation and maintenance has been a prime consideration in the design of PRO XF, minimizing system downtime associated with servicing and maintenance and providing hugely improved operating efficiencies. Through innovative design and lean manufacturing, Walker Filtration has been able to significantly reduce lead time when compared to conventional fabricated vessels, holding all components in stock.

Compressed air in industry is considered the ‘fourth utility’ and provides an essential power source for many manufacturing operations where other power sources are deemed unsafe or inappropriate.

Used as a motive force for powering tools and automated machinery, the requirement for a compressed air supply to be clean, dry and contaminate free is crucial to ensuring safe, efficient, and profitable operation and manufacturing. The presence of dust, oil, moisture, and particulates within a compressed air line can significantly reduce the performance and lifespan of end-use equipment and lead to damage of the finished goods being manufactured. Therefore, correct air filtration is essential to delivering high quality compressed air to the quality required for the end application.

PRO XF’s robust, high quality design ensures that clean and oil free compressed air is delivered contaminant free, to the exacting specifications required for end use. Suitable for worldwide installation and ideally suited for multi-compressor installations and skid based packages, the new PRO XF range will meet and exceed the highest standards of air purity when tested in accordance with ISO8573-1: 2010 air quality classes.

PRO XF Features & Benefits

The all new PRO XF combines innovative design with high efficiency filter elements to deliver a market leading filtration solution for high flow applications.

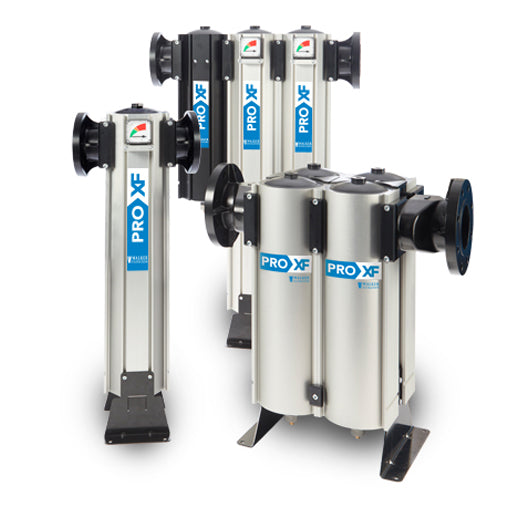

Available in 2”, 2 ½” and 3” NPT and BSPP threaded, and 150 lb (3" and 4") flanged housings, the new PRO XF filter provides a robust and compact range of compressed air filters that is suitable for installation worldwide.

Through combining revolutionary construction features and high quality materials, Walker Filtration has created a safe and reliable filter range that minimizes system downtime associated with servicing and maintenance.

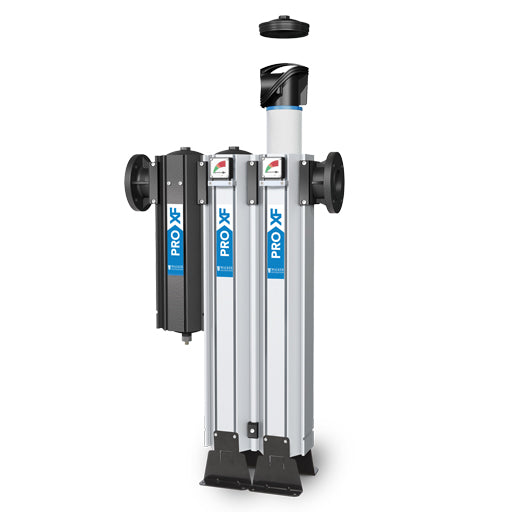

Modular Construction Available as individual threaded and flanged filters, filters can be installed individually or banked together using slim-line connectors.

Service Friendly Top loading design makes access to the internal filter element quick and simple, eliminating the need to remove drain during element change out.

Compact Design PRO XF’s space efficient design is up to 65% lighter and 45% smaller when compared to comparative fabricated models.

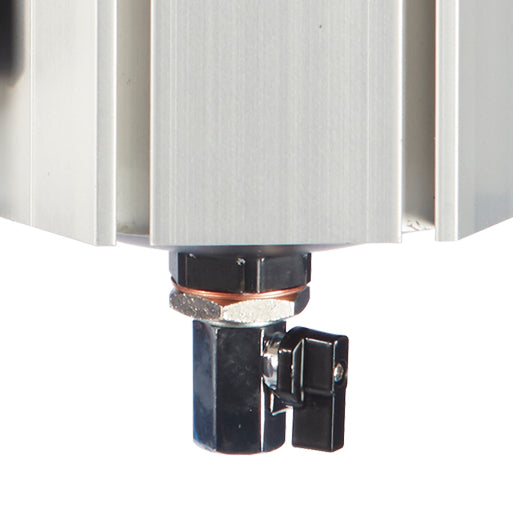

Externally Accessible Drain Valve Unique easy access drain can be removed externally and is supplied as standard on all models.

PRO XF Particulate Filter Datasheet
