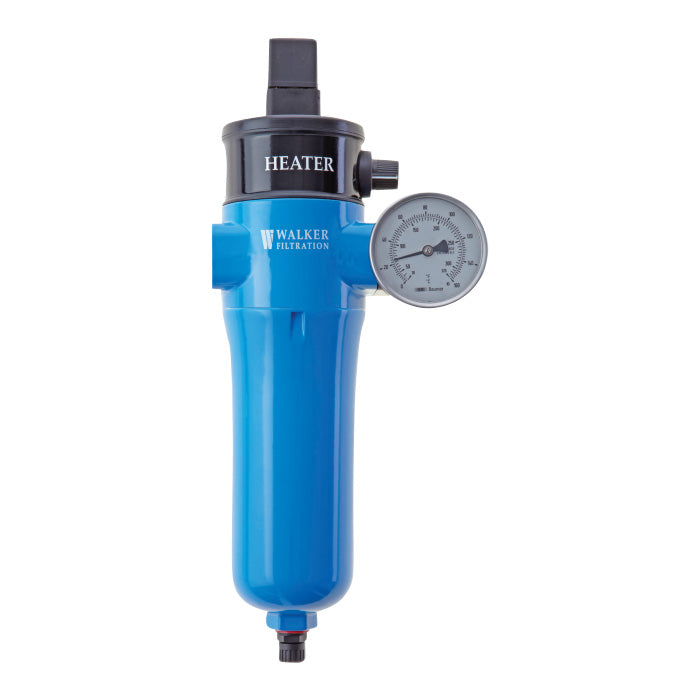

Walker Filtration A39FTH A-Range Heater & Filter Heater Package

Walker Filtration has a range of 8 cool to touch in-line heater packages with unique features that deliver various compressed air temperatures to suit your application requirements.

Suitable for use in both industrial and breathing air applications, Walker Filtration’s range of Heaters and Filter Heater Packages allow air to be filtered and temperature controlled between 68˚F and 248˚F (20˚C and 120˚C).

Our range of compressed air in-line heater systems use an open coiled heating element and high accuracy output temperature sensing device. This combination of a fast responding heater and sensor allows the unit to adjust quickly to any variations in flow rate or line pressure, without deviation in the output temperature.

A compact solid-state temperature controller is mounted on top of the heater unit, allowing the exact temperature output to be indicated by a bi-metallic thermometer which is clearly visible at the front of the heater.

Comprehensive Range NPT threaded connections from 3/8” to 1/2”. RP (BSP parallel) available upon request

Drain Valve Included Semi-automatic drain valve fitted to all heaters as standard

Bi-metallic Thermometer Heaters available with and without bi-metallic thermometer

• Combined Heating and Filtration Solutions Heaters can be supplied directly mounted to Walker Filtration pre-filters to ensure that processed air is clean
• Product Safety in Mind Bi-metallic thermometer located internally within the heater isolates power to the heater if temperature exceeds 257˚F (125˚C)
• Variable Temperature Control Air can be filtered and controlled at any temperature between 68˚F and 248˚F (20˚C and 120˚C) providing a versatile heater suitable for both industrial and breathing air applications

A-Range Heater & Filter Heater Package Datasheet
