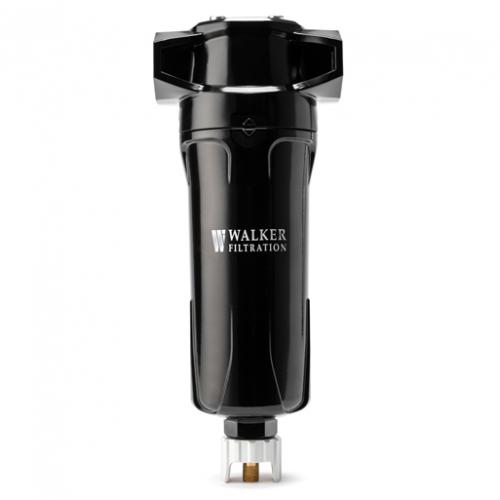

Walker Filtration A30320WS Alpha Water Separator

Flow Rates 6 SCFM (10 Nm³/hr) to 1500 SCFM (2550 Nm³/hr)

Integrating into Walker Filtration’s compressed air filtration range, the Alpha Water Separator combines proven Alpha centrifugal technology with a new forward thinking housing design to deliver market leading water removal efficiencies – eliminating up to 99% bulk water with continuously low differential pressure.

The custom engineered centrifugal module features unique vanes to eliminate points of low efficiency, and a vortex arrestor to stop re-entrainment - ensuring minimal operating pressure loss and maintaining excellent liquid removal, even at low velocities. No replacement components are required, making Walker Filtration’s Water Separators a viable and cost effective solution for removing bulk water from compressed air.

Unique Centrifugal Module Removes up to 99% of bulk water even at low velocities

Externally Accessible Drain Valve Eliminates the need to access inside the water separator housing when servicing the drain

Modular Construction Low cost connecting kits and new filter head design enables easy close coupling assembly

• Energy Saving Water Separators operate with consistently low differential pressure reducing both energy consumption and operating costs
• Flexible Installation Modular design and accessible fixings enable simple close coupling assembly
• Cost Effective No replacement components required
• Externally Accessible Drain Valve Drain valve can be removed externally on larger models
• Product Safety in Mind Guaranteed safe housing closure with rotational safety stop
• Corrosion Protection Internal and external electrophoretic painting followed by a tough exterior polyester powder coating


Alpha Water Separator Datasheet
