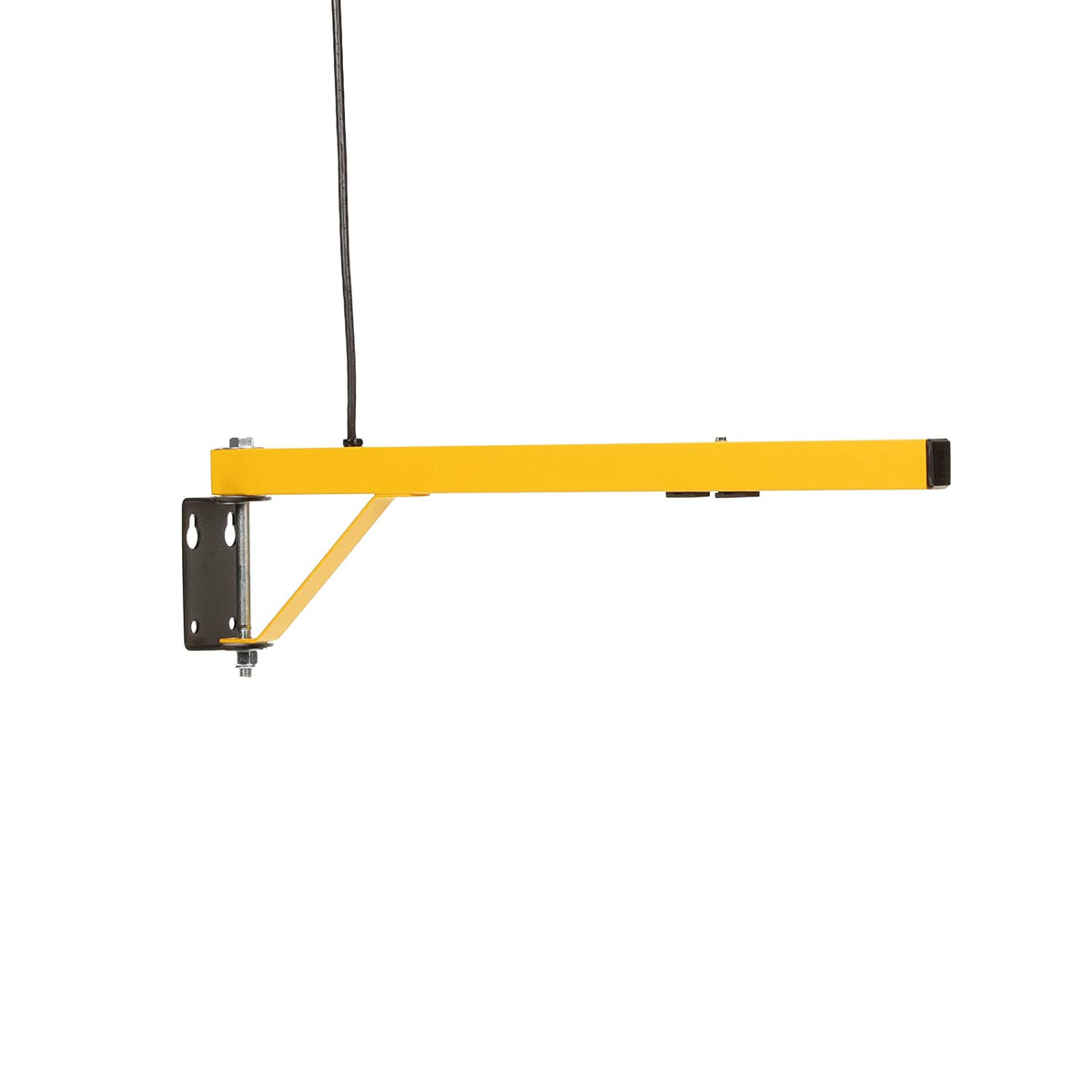

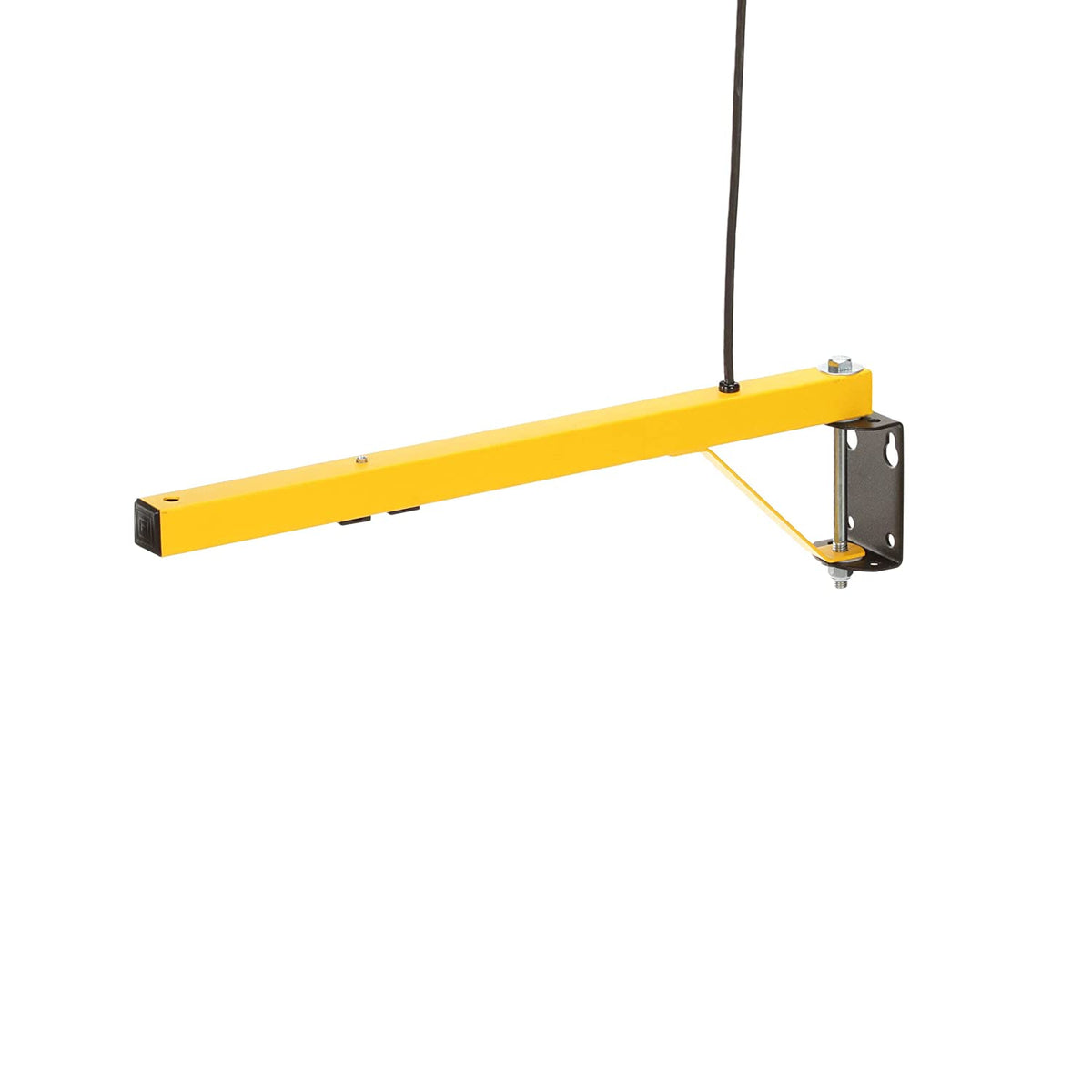

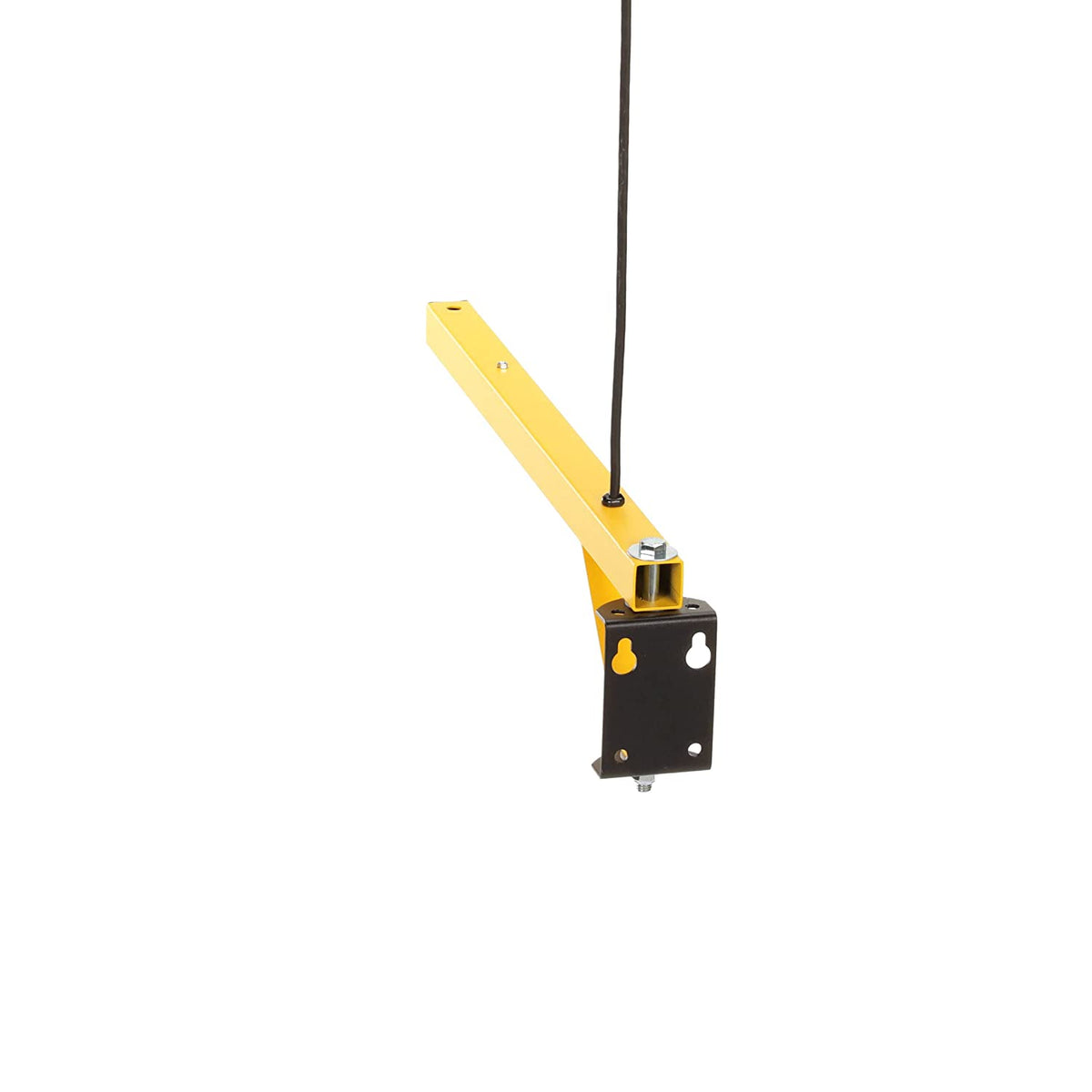

TPI 24LDA 24" Standard Mounting Arm Loading Dock Lights - Modular

$ 126.00 $ 80.64
Bulk Pricing: Request a Quote
  • Availability: Out Of Stock
  • Product Sku: 04465302
  • 14” long, 18/3 conductor cord plugs into electrical junction box on arm (except DKLED-30W-WP)
  • On/Off switch & wire guard included with each light head
  • Bulb included with all light heads except DKL-INC
  • DKLED-30W-WP is IP65 rated and weather tight
  • DKL-LED-37 does not include a guard but is compliant with ROHS 2 Directive (2011/65/EU), that of which includes the application exemptions outlined in Annex III of the directive.
  • Imported to TPI specifications.
  • California residents see Prop 65 Warnings

Mounting Arm Features:
  • 1 1/2" square, 11 gauge, steel tubing
  • 3" x 5" x 3/16” mounting plate attaches with (4) 3/8" bolts

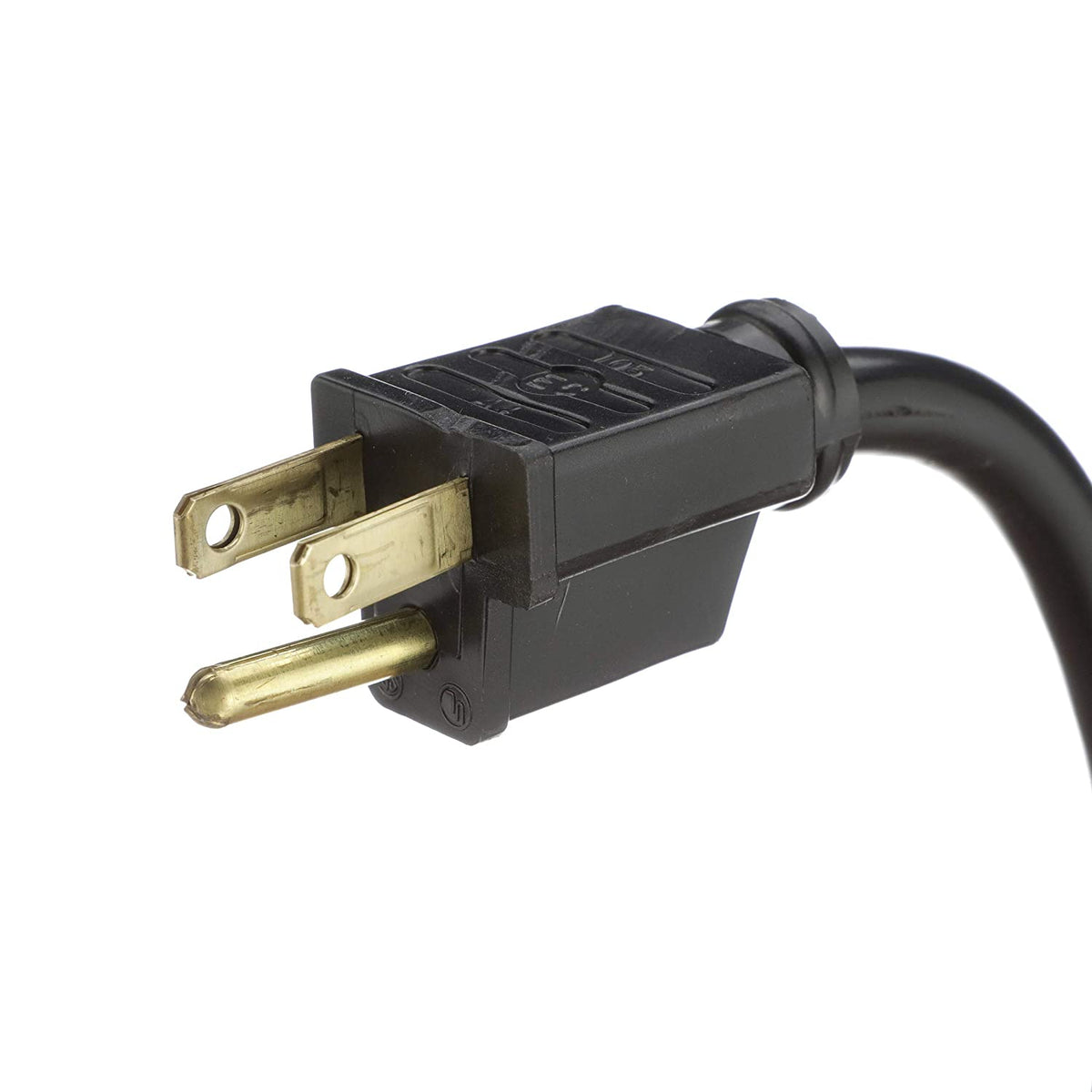

  • 5' long, 18/3 SJTW conductor cord and NEMA 5-15 grounded plug
  • The outer arm on 40VA & 60VA arms will swing 300° in horizontal plane & 210° in vertical plane
  • Made in U.S.A.

 Catalog Number 04465302
 Model Number 24-LDA
 Arm Length 24
 Arm Number
 1
 Cord Length 5'
 Cord Type 18/3 SJTW NEMA 5-15
 Agency Rating ETL-CUS
 Voltage 120
 Weight (lbs) 11
 Color Yellow w/ Black Accents
