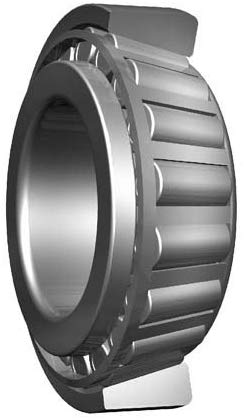

Timken 32313M-90KM1 Tapered Roller Bearing Assembly

$ 585.20
Bulk Pricing: Request a Quote
  • Availability: In Stock
  • Product Sku: 32313M-90kM1
Quantity
Shopify secure badge

Timken Tapered Roller Bearing Assembly | Part # 32313M-90KM1


  • Timken is the recognized global leader in tapered roller bearings.
  • It has the most extensive offering in the market.
  • With capacity to manage both radial and axial loads, high-performance
  • Timken tapered roller bearing assemblies are engineered to provide the greatest durability in the most compact space.
  • Widest choice including both inch and metric sizes
  • Engineered to deliver higher speeds, heavier loads and longer life
  • ISO 355
  • Unrivaled technology and engineering support
  • Single row bearings are the most common configuration
  • An assembly includes separable inner (cone) and outer (cup) rings

SPECIFICATION:
Bore Diameter (inch): 2.5591
Bore Diameter (mm): 65
Outside Diameter (mm): 140
Outside Diameter (inch): 5.5118
Width T (inch): 2.0078
Width T (mm): 51
Inner Ring Width B (inch): 1.8898
Inner ring width B (mm): 48
Outer ring width C (inch): 1.5354
Outer ring width C (mm): 39
Max Shaft Fillet Radius R (mm): 3
Max Shaft Fillet Radius R (inch): 0.12
Max Housing Fillet Radius r (inch): 0.1
Max Housing Fillet Radius r (mm): 2.5
Dynamic Load Rating C1 (lbs): 72000
Dynamic Load Rating C1 (N): 320000
Static Load Rating Co (N): 388000
Static Load Rating Co (lbs): 87200
Factor K: 1.69
Factor e: 0.35
Factor Y: 1.74
Precision Level: Class K (Standard) Tolerance
Unit system: Metric
Special Features: ISO 355
