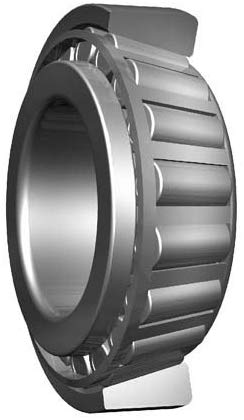

Timken 32308-90KA1 Tapered Roller Bearings

$ 172.43
Bulk Pricing: Request a Quote
  • Availability: In Stock
  • Product Sku: 32308-90KA1
Quantity
Shopify secure badge

Timken Tapered Roller Bearings | Part # 32308-90KA1

  • Timken is the recognized global leader in tapered roller bearings.
  • It has the most extensive offering in the market.
  • With capacity to manage both radial and axial loads, high-performance Timken tapered roller bearing assemblies are engineered to provide the greatest durability in the most compact space.
  • Widest choice including both inch and metric sizes
  • Engineered to deliver higher speeds, heavier loads and longer life
  • ISO 355
  • Unrivaled technology and engineering support
  • Single row bearings are the most common configuration
  • An assembly includes separable inner (cone) and outer (cup) rings

ATTRIBUTES:
Bore Diameter (inch): 1.5748
Bore Diameter (mm): 40
Outside Diameter (mm): 90
Outside Diameter (inch): 3.5433
Width T (inch): 1.3878
Width T (mm): 35.25
Inner Ring Width B (inch): 1.2992
Inner ring width B (mm): 33
Outer ring width C (inch): 1.063
Outer ring width C (mm): 27
Max Shaft Fillet Radius R (mm): 2
Max Shaft Fillet Radius R (inch): 0.08
Max Housing Fillet Radius r (inch): 0.06
Max Housing Fillet Radius r (mm): 1.5
Dynamic Load Rating C1 (lbs): 30000
Dynamic Load Rating C1 (N): 133000
Static Load Rating Co (N): 150000
Static Load Rating Co (lbs): 33700
Factor K: 1.69
Factor e: 0.35
Factor Y: 1.74
Precision Level: Class K (Standard) Tolerance
Unit system: Metric
Special Features: ISO 355
