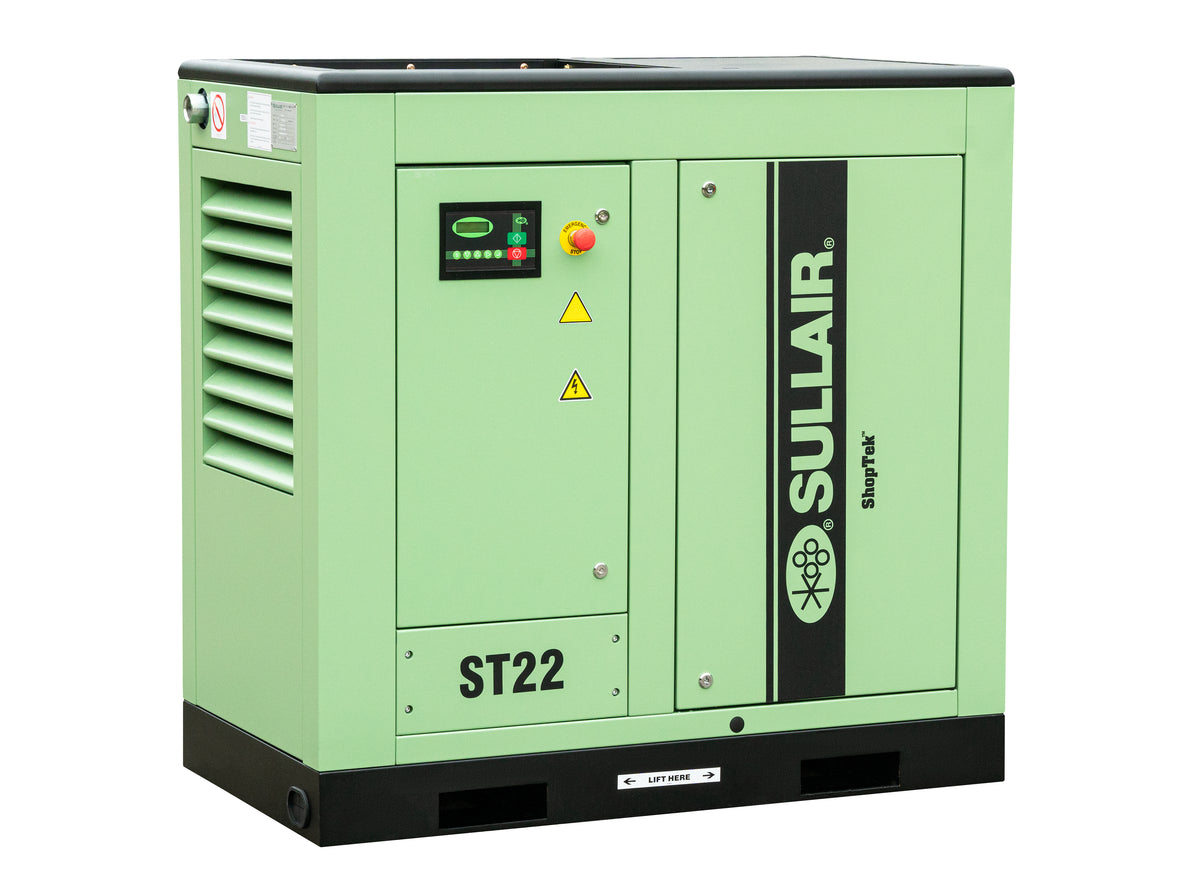

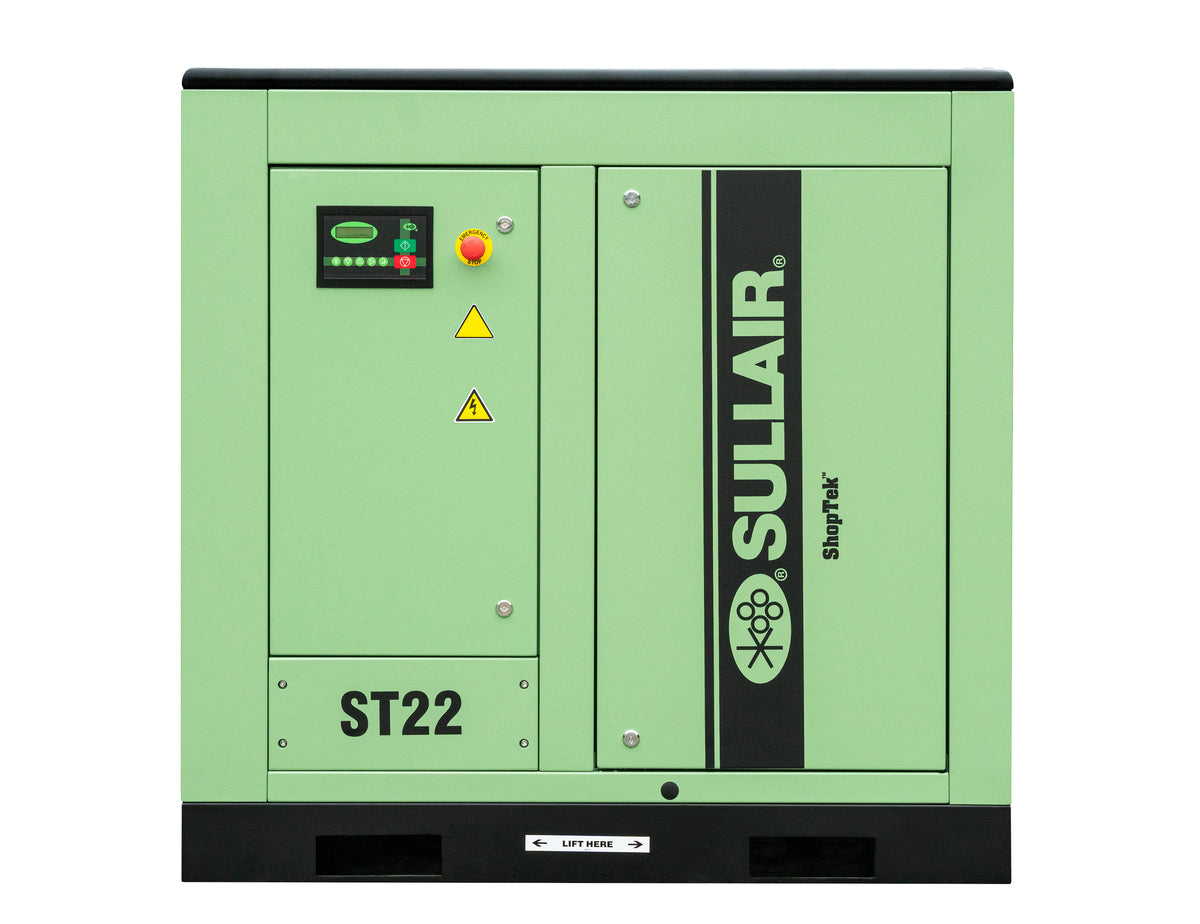

Sullair ShopTek ST2208 Air Compressor

Sullair ShopTek® air compressors redefine industry standards for continuous-duty compressors in the 5 to 100 hp range. Designed with the end customer in mind, ShopTek compressors feature a small footprint and are built to provide exceptional reliability and extremely low maintenance.

Reliable Sullair Air End

• Patented rotor design
• Bearing fluid reservoirs
• Long life bearings


Sound Enclosure for Quiet Operation

• Reduces sound levels to as low as 66 dBA
• Easily removable for service


Intelligent Electronic Controls

ShopTek® compressors are fitted with the latest technology microprocessor controller to ensure uniform operation and uninterrupted production.

Deluxe Monitoring

All essential compressor parameters are conveniently displayed on the controller. Pressure is controlled using transducers to minimize off-load running and reduce over-compression to help ensure optimum performance and savings in energy costs.

Energy Efficient Features

All ShopTek motors are designed for improved energy efficiency and a compact footprint. That’s why Sullair provides premium efficient motors as standard. Plus, the Sullair air end is designed to deliver maximum output with minimum power consumption, giving ShopTek compressors a superior energy advantage.

The Sullair Standard

Higher Than the Industry Standard

All ShopTek compressors are factory-filled with biodegradable Genuine Sullube® 10,000 hour fluid.

• Protects and cleans (no varnish)
• Controls operating temperatures
• Optimal viscosity
• Environmentally friendly
• Reduces fluid loss High flash point (263 ̊ C)

ShopTek compressors are covered by the 5-year Emerald Warranty – which provides coverage on major components including:

• Air end
• Air/fluid receiver
• Main Drive Motor
• Fluid cooler
• Aftercooler

Legendary Sullair Air End

A continuous supply of compressed air. It’s your biggest expectation in an air compressor. The legendary Sullair air end, at the heart of tens of thousands of compressors worldwide, will help keep your operation pumping, worry-free.

Proven Reliability

Bulletproof. It’s a word often used in conjunction with the Sullair air end. Although the principle of rotary screw compression remains the same, as does the durability, Sullair continuously improves the materials, engineering and design of its air ends and compressor packages.

Longer Air End Life

Controlled pressure lubrication and bearing fluid reservoirs assure a reliable fluid supply of rotating elements – helping extend air end life.

ShopTek Performance Air System

All ShopTek 5–20 hp compressors may be upgraded to the ShopTek Performance Air System by adding matching dryers, filters and receiver tanks.

The Performance Air System includes a ShopTek compressor, a refrigerated dryer, a liquid and particulate filter, and a receiver tank. All components of the system have been perfectly sized to provide maximum performance. Plus, the Performance Air System is simple to install and requires minimum floor space.

Features of the Receiver Tank Include:

• ASME and CRN approved
• 80 and 120-gallon tank availability
• Pressure relief and ball valve as standard

Clean, Dry Air is Essential

Quality air treatment – the removal of condensate and particulate —
is essential to protect your plant air system and air-using equipment. Plus, quality air can help improve the quality of your product and process.

The Performance Air System helps achieve your goals with:

• Matched refrigerated dryer — to help remove water vapor found in compressed air. The Sullair dryer features an oversized demister separator, dew point indicator and easy drain access. And the unit features environmentally compatible refrigerant.
• High-efficiency filter — to help remove particles down to 1.0 micron. The filter also helps to remove coalesced liquid and lubricants.

Specifications
