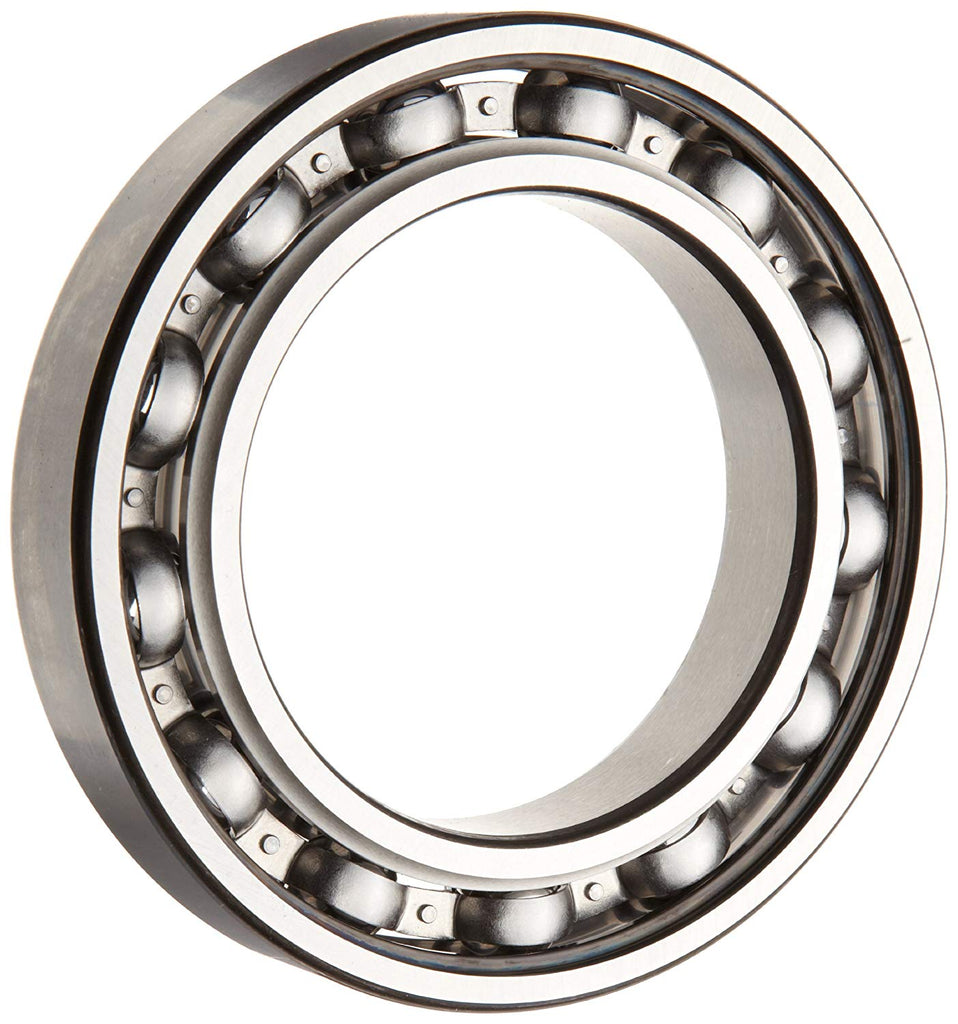

SKF 6019/C3 Deep Groove Ball Bearing

The SKF deep groove ball bearing is an open ball bearing with C3 clearance and has a deep-groove geometry for high speeds and supporting both radial and axial loads. This bearing has C3 radial internal clearance for radial slack between the inner and outer rings that is greater than CN (normal) to compensate for thermal expansion. The steel cage evenly spaces the balls for even load distribution and prevents contact to reduce friction, vibrations, and noise. The bearing has an open configuration for lubrication in place and applications involving minimal exposure to dirt, grime, debris, and other contaminants. This deep groove ball bearing is for use in applications that involve combined radial and axial loads and a need for high running accuracy and stiffness at high rotational speeds. Such applications include clutches, drives, gearboxes, compressors, pumps, turbines, and printing and textile machines, among others.

• Static Load Capacity: 54000 pounds
• Dynamic Load Capacity: 60500 pounds
• Bore Diameter: 95 millimeters
• Item Diameter: 145 millimeters
• Item Weight: 2.8 pounds
• Material: Steel
• Outside Diameter: 145 millimeters

Rolling bearings use rolling elements to maintain the separation between moving parts to reduce rotational friction and support radial and axial loads. These elements can be one of the following types: ball, cylindrical, spherical, barrel, needle, spindle, or tapered. All rolling bearings are open, shielded, or sealed. Sealed bearings are lubricated with oil or grease in the bearing factory, while open and shielded bearings are meant to be lubricated in place, with periodic reapplication of lubrication, based on use. The shield protects the working parts of the bearing from environmental debris that may be introduced and could reduce the ball bearing speed and lifespan. Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, dental equipment, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.

SKF Group manufactures bearings and units, seals, mechatronics, and lubrication systems that meet International Organization for Standardization (ISO) 14001 and 9001, and Occupational Health and Safety Assessment Series (OHSAS) 18001 standards for quality assurance. The company, founded in 1907, is headquartered in Göteborg, Sweden.
