Ramfan EFi50xx 16" Hazardous Location Blower

$ 3,206.00 $ 3,045.70
Bulk Pricing: Request a Quote
  • Availability: In Stock
  • Product Sku: EA8000XX
Quantity
Shopify secure badge

The electric powered EFixx Series hazardous location blowers/exhausters, with whole-unit certification, are intended for use in Adverse Atmospheres in accordance with the limitations of the rating. The whole-unit certification not only provides protection and peace of mind to the user; it also prevents suppliers from being linked to the chain of liability.

The largest hazardous location blowers for highest volume of air movement. Use the EFi50xx (0.5 Hp) when you need a high volume, low velocity, somewhat gentler flow; or the EFi150xx (1.5 Hp) model for higher velocities, increased volumes and reduced purge or cooling times. 16" (40 cm) integrated duct adapters. Stackable in storage or during operation.

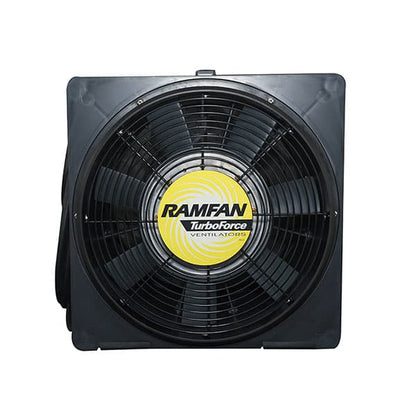

Ramfan EFi50xx 16" Hazardous Location Blower.jpg



Specifications:
Model EFi50xx
Part EA8000XX
Ships as 115V
Motor 0.5 hp / 0.37 kW
Motor Type Totally Encapsulated Air Flame Proof
Electric 115/230V, 1ø, 50/60Hz
Amps (Start/Run) 25A / 6A
Cable Lengths 30'/9m, 14AWG/2.5mm2
Plug Types Not Included
Operating Temperature -22°F to +104°F / -30°C, to +40°C
Noise 90.2 dB @ 3' (1 m)
Weight 49 lbs / 22 kg
Dimensions
(h x w x d)
19 x 18 x16 in / 48 x 46 x 41 cm
Impeller 21-Blade
