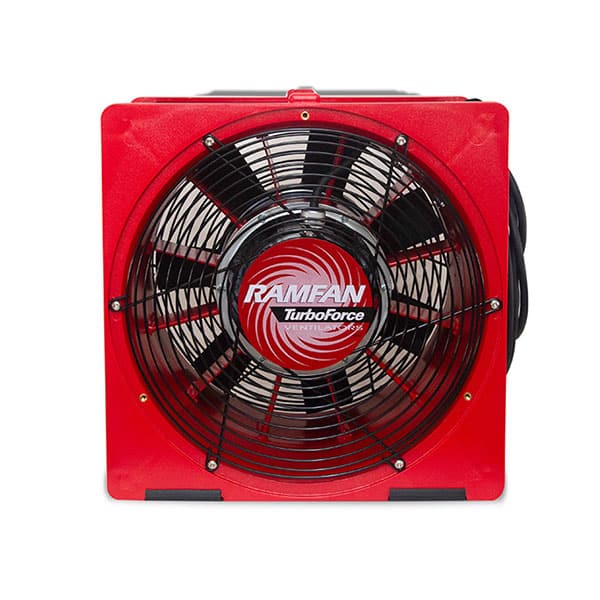

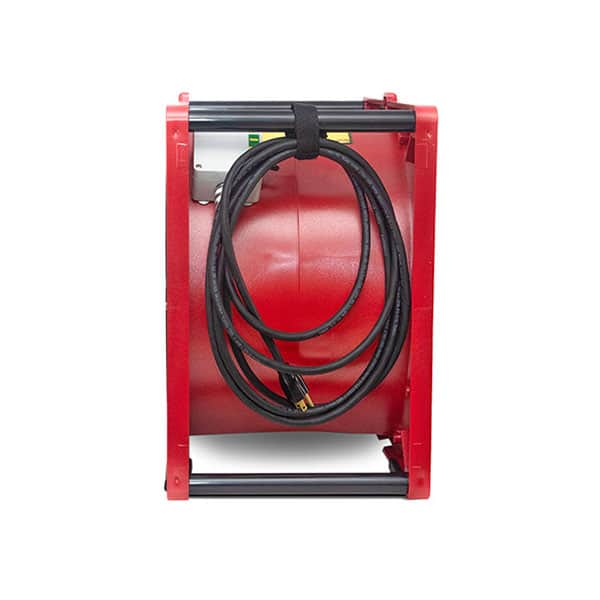

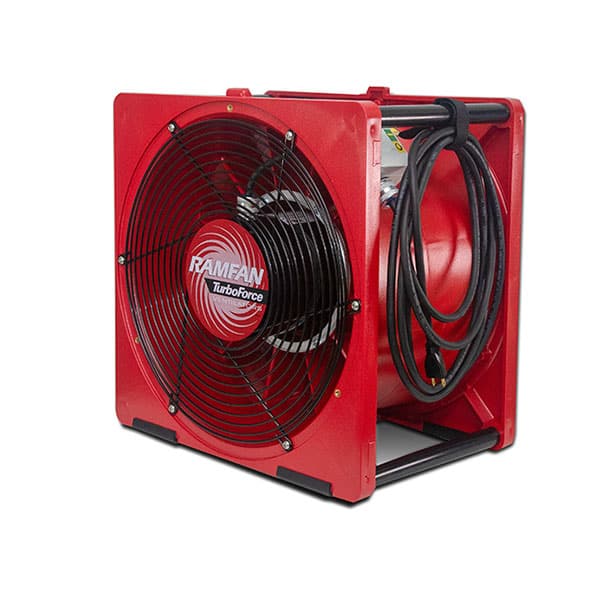

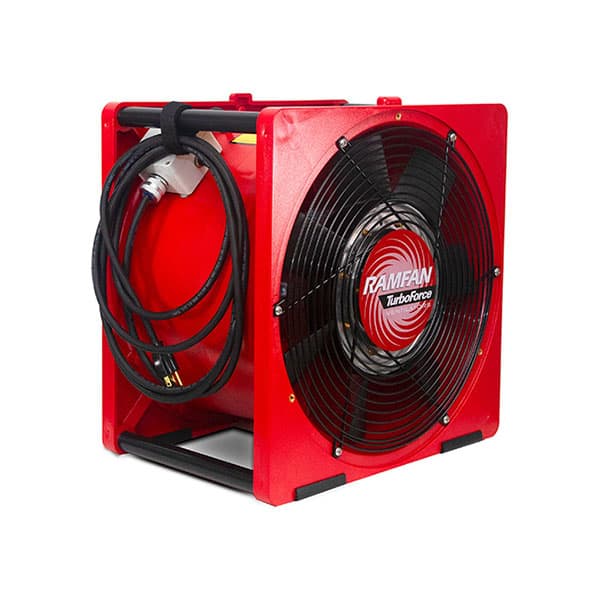

Ramfan EFC50X 16" Fire Rescue Smoke Ejector

$ 2,412.00 $ 2,291.40
Bulk Pricing: Request a Quote
  • Availability: Out Of Stock
  • Product Sku: EA7000X

These EFCx Series Smoke Ejectors are built with a high-impact, heat-resistant Lexan® housing and an UL/IECEx/ATEX-certified explosion-proof motor for use in areas where potentially explosive gasses are unlikely to be present; establishing and ensuring a safer work environment.

The Polymer TurboForce™ impeller is engineered to enhance performance as well as maximizing the airflow; allowing the smoke ejection time to reduce dramatically and bringing fresh air into the confined space more effectively.





Specifications:

Model EFC50x
Part EA7000X
Weight 49 lbs / 22 kg
Dimensions (h/w/d) 19 x 18 x12 in
48 x 46 x 31 cm
Amps: Start
Run 		115V: 21A
115V: 6A
Motor 0.5 Hp / 0.37 kW
Noise 90.2 dB @ 3′ (1 m)
Electric 115/230V, 1ø, 50/60Hz
Approvals CSA, UL, CE



Airflow
Free Air 3,200 cfm
(5,440 m3/hr)
Through Duct
15’/4.6 m w/ one 90° turn: 		1,935 cfm
(3,289 m³/hr)
