Gearench FLA5000 Petol Flange Lifter

$ 1,784.00
Bulk Pricing: Request a Quote
  • Availability: In Stock
  • Product Sku: FLA5000
Quantity
Shopify secure badge

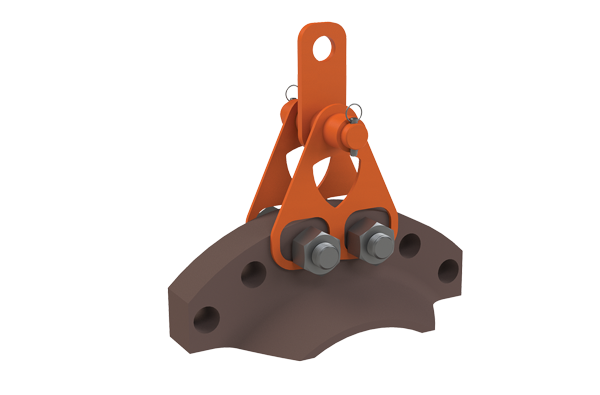

The PETOL FLANGE LIFTER provides a safe and easy method of installing and removing blind and weld neck flanges. By eliminating the need to attach a lifting eye to the flange, the tool is both time and cost effective. Each flange lifter is load tested and magnetic particle inspected to ensure safety and quality.

  • No lifting eye required
  • Easy installation and removal of blind and weld neck flanges
  • Safe
  • Saves time and money
  • Designed to comply with ASME Specifications B30.20 and BTH-1, Design Category B, Service Class 4
  • Serialized and stamped with Load Rating
  • Supplied with Data Book that contains operating instructions, warnings, load test certificates and MPI certificates

Specifications:

  • For use on: Blind & Weld Neck Flanges
  • Fits Bolt Size: 3/4" - 4"
  • Fits Flange Thickness: 1" - 11-1/16"
  • Weight: 38 lbs.
  • Rated Load: 5,000 lbs.
