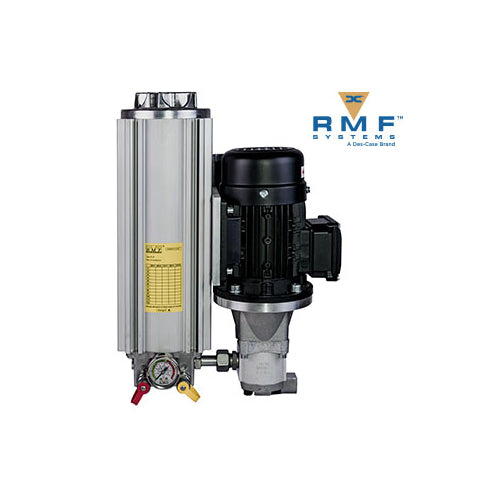

Des-Case OLU1A30HBD01000 Hydraulic Off-Line Filtration Unit

$ 1,858.46

Bulk Pricing: Request a Quote

Availability: In Stock
Product Sku: OLU1A30HBD01000

Quantity

Product Description

Off-Line Unit, single housing, pump/motor | 2.1 lpm/ 0.55 gpm | 110 VAC 60Hz | 1-phase, incl. 1 Cellulose element (30HB), visual indicator, mounting plate and single-stage (parallel) filtration

The hydraulic market accepts that 80% of mechanical failures are caused by oil contamination in the system. The Off-Line Filtration System (OLU) attacks contamination of your equipment at the source. In addition to solid particles, this kidney loop system is also capable of removing water from the oil. For critical applications that need regular filtration, or a maintenance location that is hard to access, permanently-mounted OLU improve equipment reliability with continuous-duty, always-on filtration that cleans oil and keeps it clean. A properly sized OLU can turn over the entire volume of a reservoir several times a day (we recommend 5-7 turns), maintaining ISO fluid cleanliness codes well below the upper limit

Specifications

Nominal Flow	2,1 l/min
Standard Max. Oil Temperature¹	80°C
Max. pressure filter housing	20 bar
Inlet connection²	3⁄8’’ BSP female
Outlet connection	1⁄2’’ BSP female
Power supply Electric Motor	Various electrical power supplies possible (see ordering code)
Suitable elements	30HB, 30HV, 30NB, 30NV, 30G1B, 30G1V,30G3B, 30G3V, 30G6B, 30G6V, 30G12B, 30G12V 30A5V
By-pass openings pressure	6,2 bar (at 0 bar back pressure)
Pump safety valve	15 bar
Max. tank volume	±1.350 l
Fluid compatibility³	Hydraulic fluids according to ISO 2943
Approximate weight	14 kg

¹ For other oil temperatures, please contact Des-Case
² Inlet Connections are pump dependent. Please contact Des-Case.
³ For other fluids, please contact Des-Case

Features Performance

The principle of the RMF Systems filters is based on the unique original filter elements. With a choice of filter fineness down to 0,5 micron and Filter efficiency up to β4=10.000, they have the capacity to remove even the smallest of dirt particles from the oil. RMF System’s Off-line kidney loop oil filtration system offers a wide range of elements in micron sizes, filter media, and fluid compatibility. Combi-elements (water and solid particle retention) complement the unique range.

Water Absorbing

RMF Water absorbing filters are off-line filters that use a special water-absorbing spin-on as a pre-filter. The fluid is pumped through the pre-filter which removes most water and larger solid contamination, in the second stage the fluid passes through the RMF cellulose micro filter where final water removal takes place as well as solid particle removal.

Applications

The RMF off-line units attack contamination of your system at the source. In addition to solid particles, these filters are also capable of removing water from the oil. The use of RMF filters means less defects, less maintenance and less wear and tear of the hydraulic components. The RMF Off-Line units can be fitted to every imaginable industrial application where hydraulic or lubrication systems are present.

In recent years RMF Systems have developed a great deal of experience in cleaning and keeping clean hydraulic and lubrication systems in the:

Steel industry
Plastic moulding industry
Maritime industry
Petro-chemical industry
Paper industry

Efficiency

The hydraulic market accepts that 80% of mechanical failures are caused by contamination in the system. The RMF Off-Line Units attack contamination of your systems at source. In addition to solid particles, these filters are also capable of removing water from the oil. The use of RMF filters means less defects, less maintenance, and less wear and tear of the hydraulic components. The RMF Off-Line Units can be fitted to every imaginable industrial application where hydraulic or lubrication systems are present.
