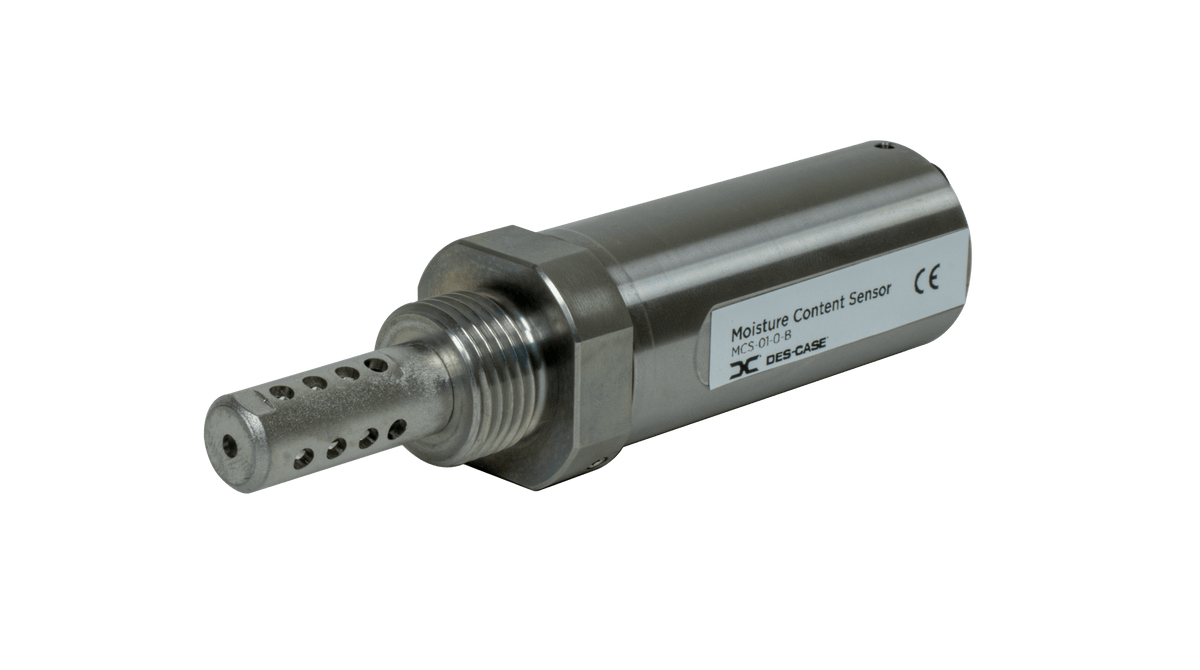

Des-Case MCC-2-B-030 Moisture Content Sensor

Moisture Content Sensor Power Data Cable, 8-pins connection, 10ft / 3m

The moisture content sensor (MCS) is suitable for most hydraulic and lubricating fluids. The high accuracy of the measurement and excellent long-term stability make the MCS ideal for online monitoring of moisture in transformer, lubricating and hydraulic fluid, as well as diesel fuel. The MCS is perfectly suitable for long-term usage in moisture levels, higher than 90% RH. Making it the perfect solution for gearboxes, thrusters and other applications where free water is a threat. By combining the MCS with other Des-Case products like a Condition Monitoring Center and Vacuum Dehydration Unit, we offer you the optimal solution for your water contamination problems.

Specifications

MEASUREMENT PERFORMANCE

Measurement Range: 0-1 aw, 0 -100% RH
Moisture Accuracy (including non-linearity, hysteresis, and repeatability): 0 – 0.9 aw ± 0.02 aw, 0.9 – 1.0 aw ± 0.03 aw
Response time in oil flow (typical): < 1 min (dry-wet)
Temperature Accuracy at +68°F (+20°C): ± 0.36°F (0.2°C)

OPERATING ENVIRONMENT

Electromagnetic compatibility: EN61326-1
Ambient temperature: -40…60 °C (-40…140 °F)
Storage temperature: -40…80 °C (-40…176 °F)
Oil temperature: -40…100 °C (-40…212 °F)
Oil flow: Some flow recommended
Pressure Rating: 0…200 bar (0…2900 psi)
Fluid compatibility¹: Petroleum based and synthetic fluids

INPUTS & OUTPUTS

Analog current output: 0 – 20 mA, 4 – 20 mA
Analog voltage output: 0 – 5 V, 0 – 10 V
Digital output: RS-485, MODBUS RTU

MECHANICAL SPECIFICATIONS

Electrical connection: M12 8-pin plug
Connection: G1/2’’ BSP
Supply voltage: 21-28 VDC
Supply current: 20 mA + load current
Housing / protection rating: Stainless steel (AISI 316L) / IP66
