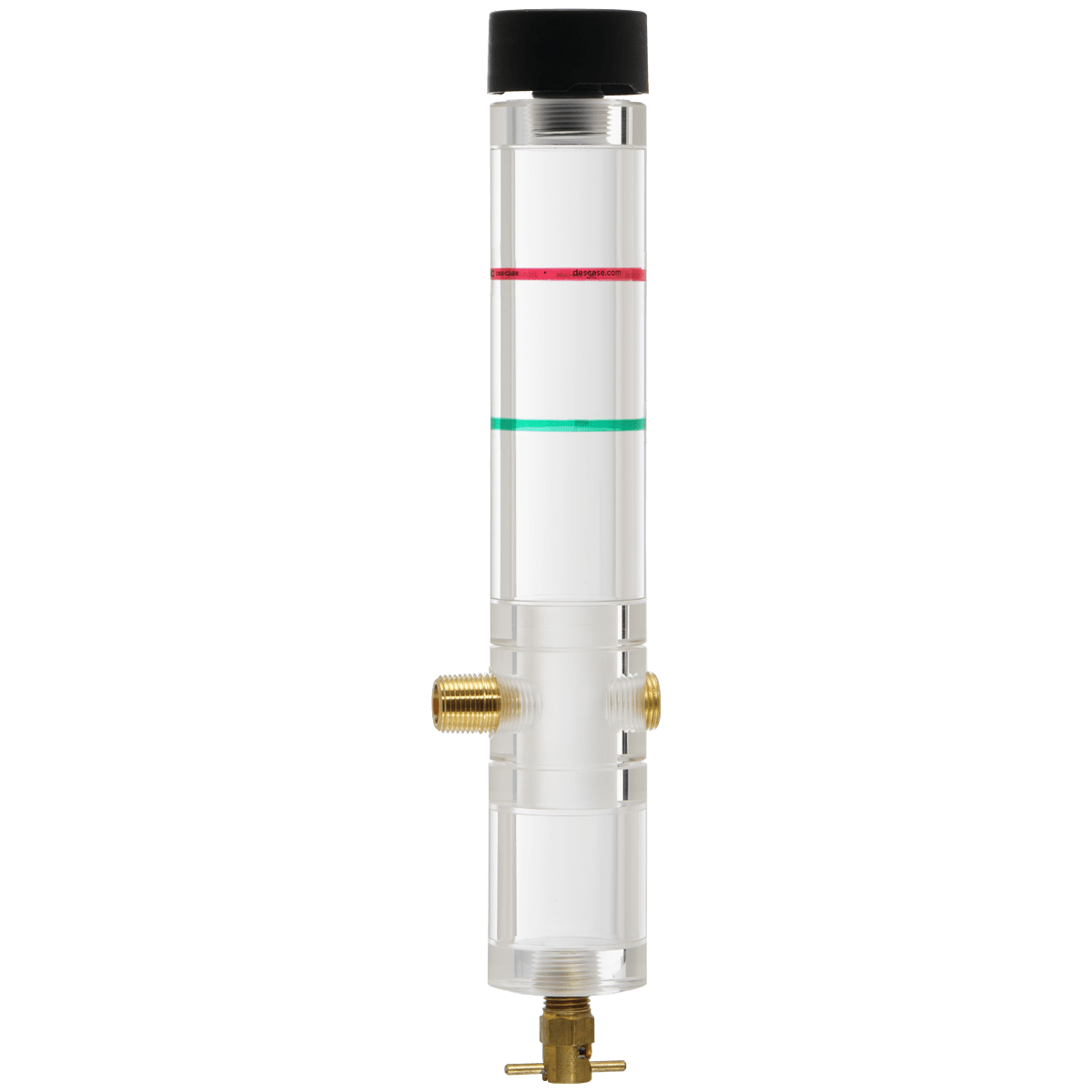

Des-Case DC-OSGL3DP Oil Sight Glass Level Monitor
- Availability: In Stock
- Product Sku: DC-OSGL3DP
The Oil Sight Glass Level Monitor (OSGL) allows you to view oil color, clarity and accumulation of water or other contaminants while monitoring the level of the oil in the reservoir. It is available in multiple lengths ranging from 3″ to 24″ to correspond to the distance from the oil reservoir access port and the maximum height the oil will reach. The secondary 3/8″ NPT port opposite the installation nipple allows for the connection of a sampling tube to draw representative oil samples without pulling outside contaminants.
Level Monitoring Area: 3 in / 76 mm
Overall Length: 6.5 in / 165 mm
Features:
By the Numbers
1. ND-2 Breather
2. Level Monitoring Area
3. Idle/Maximum Oil Level Marker
4. Running/Minimum Oil Level Marker
5. 3/8″ NPT Port with threaded Fitting
6. 3/8″ NPT Port with optional Plug
7. Water & Sediment Area
8. 1/4″ Drain Valve
Specs
Material
- Stain-resistant acrylic
- Brass fittings standard
- Des-Case ND-2 breather 0.3μ absolute (ß0.3≥1000)
Recommended Temperature Range
- -40˚F to 200˚F
- -40˚C to 93˚C
Maximum Operating Pressure
- 65 psi
- 4.48 bar
Chemical Compatibility
All mineral and synthetic oils
Available Options
- Lengths ranging from 3” to 24”
- Stainless steel fittings
- Magnetic drain valve for collecting ferrous material
Applications:
- Pumps
- Gearboxes
- Storage Tanks
Oil Sight Glass Level Monitor Technical Specs
