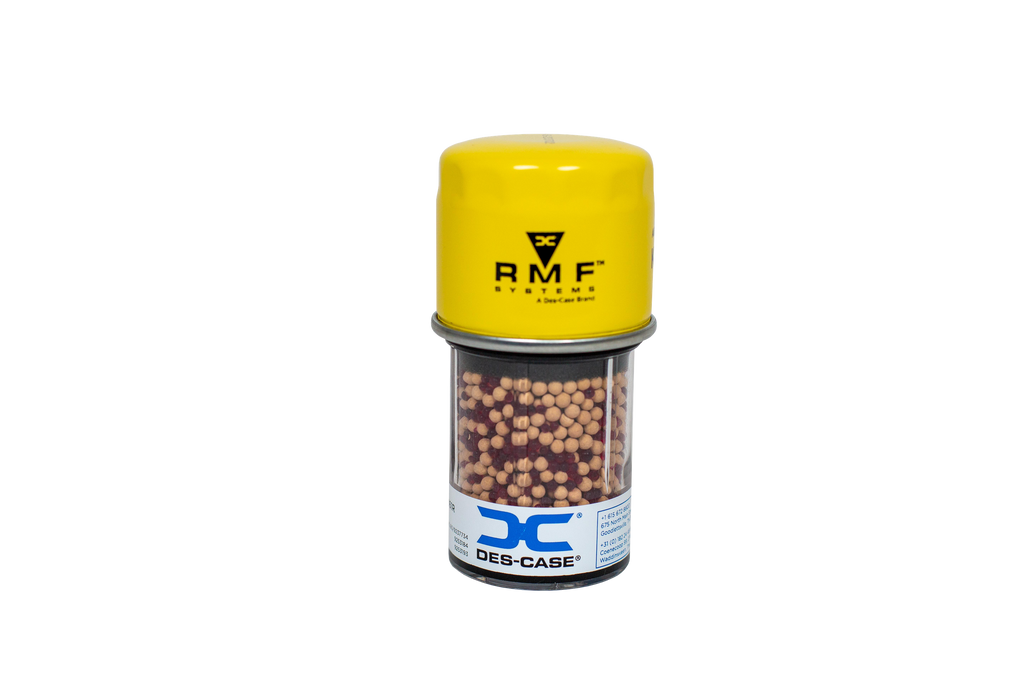

Des-Case ACM61R Desiccant Breather

ACM Series Breathers

The RMF Systems ACM breathers are suitable for mobile and industrial applications because of their lightweight, rugged body. This series is fully serviceable and has optional check valves that prevent premature saturation of the silica gel and extend breather life. The spin on filter cap also provides a high dirt holding capacity.

Applications

• Hydraulics
• Mobile & off-road equipment
• Truck differentials
• Nautical applications

Features

By the Numbers

1. Spin-On Filter Cap
A spin-on filter cap provides increased dirt holding capacity and removes airborne contamination to 3-micron absolute.

2. Foam Pad
Foam filter captures any oil mist and disperses incoming air evenly over filtration and drying areas.

3. External Ribs
External ribs on shell to create greater durability and grip when installing or replacing breather.

4. Optional Check Valves
High quality check valves that won’t clog or stick are located underneath the unit for added protection from washdown environments. Check-valves isolate equipment from ambient conditions prolonging breather life and protecting system integrity.

5. Threaded Mounting
Internal threads provide durability and stability and can be used with an adapter.

Specifications

Model: 61 Series
¹Part Number: ACM61R, ACM61RV
Filter Efficiency: 3μ absolute (β3≥200)
Amount of ZR Gel: 0.2 lbs (80 g)
Adsorption Capacity: 0.9 fl oz (29 ml)
Max. Flow Rate: N/A
Temperature Range: -40°F to 194°F (-40°C to 90°C)
Airflow without Check Valves: 9 cfm (260 l/min)
Airflow with Check Valves: 2 cfm (50 l/min)
KL Spin-On: KL60 (9237734)
ZR Gel Refill: 100 cc / RF-100 (9253184)
Spare Kit: RK-61 (9253193)

¹Note: The ACM part code ACM61R now reflects the ACM without check valves. We added the ACM61RV part code to represent the ACM with check valves.
