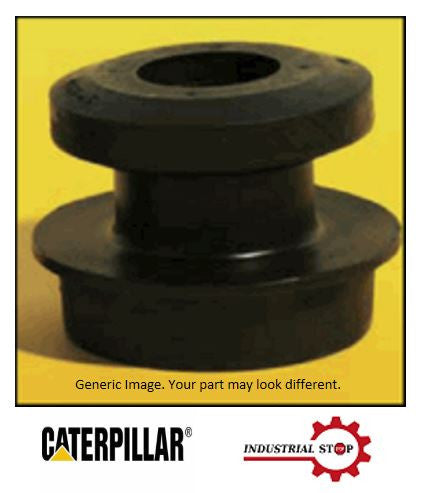

Isolation mounts are used to attach and position systems, accommodate displacement, and isolate components from the surrounding structure (vibration, shock, noise).
Mount Type: Two-Piece - Symmetric
Head Outside Diameter (mm): 76.2
Head Outside Diameter (in): 3
Head Thickness (mm): 12.7
Head Thickness (in): 0.5
Pilot Outside Diameter (mm): 54
Pilot Outside Diameter (in): 2.13
Inside Diameter (mm): 21.5
Inside Diameter (in): 0.85
Mount Height (mm): 24.9
Mount Height (in): 0.98
Bonded Sleeve: Yes
Standard Bolt Size: M20
